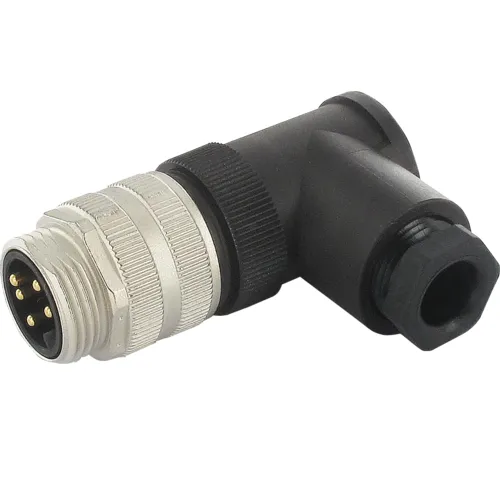

Đầu nối 7/8” male 90° 5 cực 7000-78151-0000000 của Murrelektronik: screw terminal, max 2.5 mm², vỏ cáp Φ8–10 mm, dùng cho việc cấp nguồn cho thiết bị khác
- Đầu nối kiểu 90°
- Male, 5 cực
- Cầu đấu dây: screw terminal
Đầu nối 7/8” male 90° 5 cực 7000-78151-0000000
– 7/8” male 90°
– 5 cực
– Screw terminal
– Core max 2.5 mm²
– Cho đường kính cáp Φ8–10 mm
Side 1

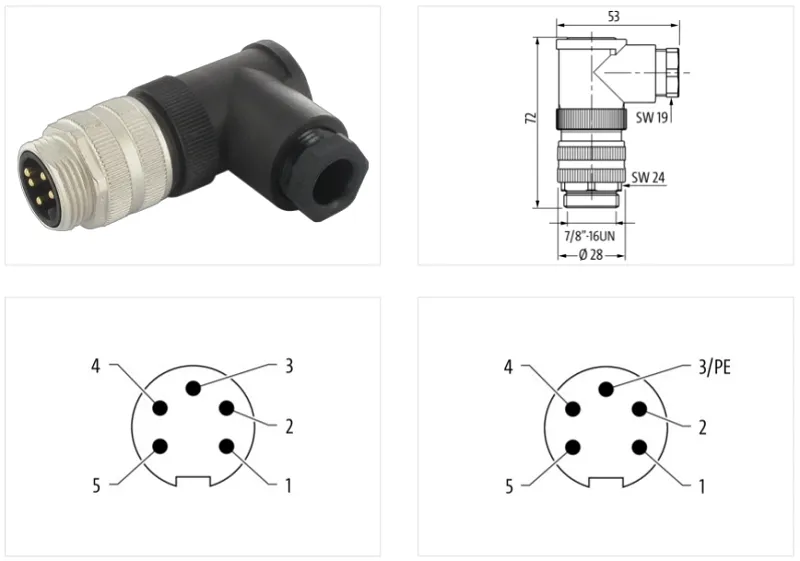

| Family construction form | 7/8″ |
| No. of poles | 5 |
| Gender | male |
| Mounting method | inserted, screwed |
| Threaded hole | 7/8″ |
| Tightening torque | 1,5 Nm |
| Cable outlet | angled |
Side 2
| Mounting method | Field-wireable |
Electrical data
| Contact resistance max. | 5 mΩ |
Electrical data | Supply
| Operating voltage AC max. | 300 V |
| Operating voltage DC max. | 300 V |
| Current operating per contact max. | 9 A |
| Operating voltage AC (UL-listed) | 600 V |
Diagnostics
| Status indication LED | No |
Installation
| Connection cross section max. | 2,5 mm² |
| Cross section connection without wire end ferrule AWG max. | 14 AWG |
Installation | Connection
| Mating cycles min. | 100 |
Device protection
| Shielded | No |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP67 |
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Overvoltage category (EN 60664-1) | III |
| Material group (IEC 60664-1) | III |
Mechanical data | Material data
| housing | PUR |
| Coating contact | gold plated |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
| Clamping range min. | 8 mm |
| Clamping range max. | 10 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
| Operating temperature max. | 85 °C |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
