Đầu nối 7/8” female 90° 5 cực 7000-78271-0000000 của Murrelektronik: kết nối kiểu screw terminal, dây max 2.5 mm², cáp Φ8–10 mm, dùng cho việc cấp nguồn cho distribution I/O…
- Kiểu vuông (góc 90°)
- Female, 5 cực
- Cầu đấu dây: screw terminal

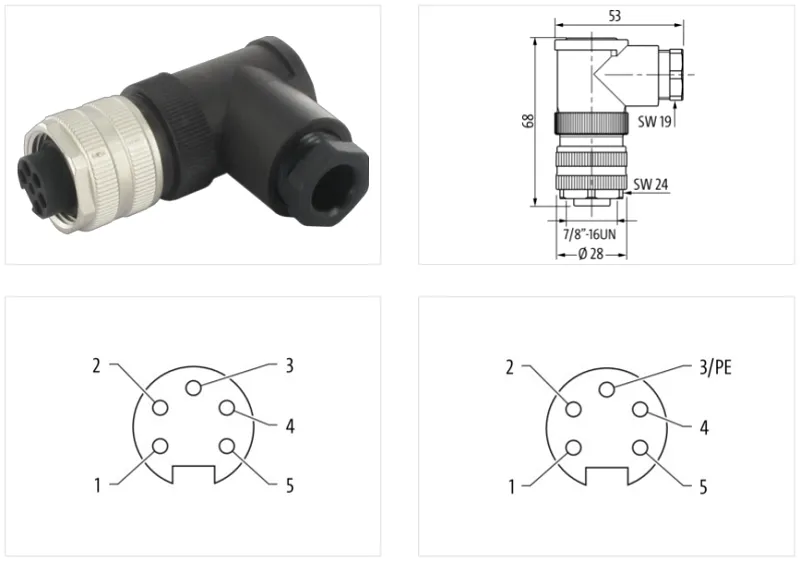

Đầu nối 7/8” female 90° 5 cực 7000-78271-0000000
– 7/8”, female 90°
– 5 cực
– Screw terminal
– Dây max 2.5 mm²
– Vỏ cáp Φ8–10 mm
Side 1
| Family construction form | 7/8″ |
| No. of poles | 5 |
| Gender | female |
| Mounting method | inserted, screwed |
| Threaded hole | 7/8″ |
| Tightening torque | 1,5 Nm |
| Cable outlet | angled |
Side 2
| Mounting method | Field-wireable |
Electrical data
| Contact resistance max. | 5 mΩ |
Electrical data | Supply
| Operating voltage AC max. | 300 V |
| Operating voltage DC max. | 300 V |
| Current operating per contact max. | 9 A |
| Operating voltage AC (UL-listed) | 600 V |
Diagnostics
| Status indication LED | No |
Installation
| Connection cross section max. | 2,5 mm² |
| Cross section connection without wire end ferrule AWG max. | 14 AWG |
Installation | Connection
| Connection | Screw terminals SK |
| Mating cycles min. | 100 |
Device protection
| Shielded | No |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP67 |
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Overvoltage category (EN 60664-1) | III |
| Overvoltage category (EN 60950-1) | III |
| Rated surge voltage | 4 kV |
| Insulation resistance min. | 10.000 MΩ |
| Material group (IEC 60664-1) | III |
Mechanical data | Material data
| housing | PBT |
| Gasket | FKM |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
| Clamping range min. | 8 mm |
| Clamping range max. | 10 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
| Operating temperature max. | 85 °C |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
