– Adapter M12 female / RJ45 0°
– M12 4 cực, D-coded, shielded
– RJ45 Ethernet CAT5
– Vỏ plastic, chống hóa chất & dầu

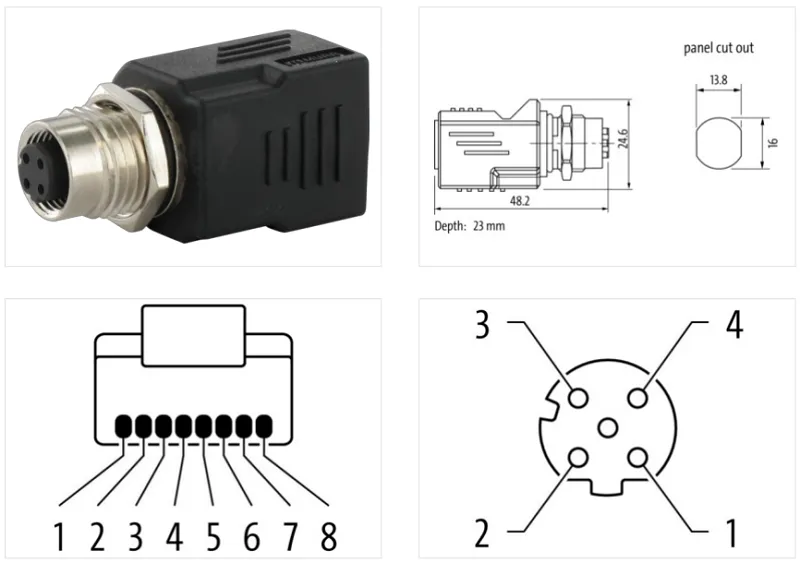

Đầu chuyển đổi M12 female 4 cực / RJ45 0° 7000-44671-0000000 của Murrelektronik: là adapter Ethernet CAT5 D-code, shielded, chuyển đổi từ M12 female thẳng sang RJ45 female. Sản phẩm phù hợp lắp trong tủ điện, cấp bảo vệ IP68 phía M12 và IP20 phía RJ45
Side 1
| Family construction form | M12 |
| No. of poles | 4 |
| Coding | D |
| Gender | female |
| Mounting method | inserted, screwed |
| Degree of protection (EN IEC 60529) | IP68 |
Side 2
| Family construction form | RJ45 |
| No. of poles | 4 |
| Gender | female |
| Mounting method | pluggable |
| Degree of protection (EN IEC 60529) | IP20 |
Electrical data | Supply
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 1,76 A |
Industrial Communication
| Data transmission rate max. | 100 Mbit/s |
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
Industrial communication | Ethernet functionality
| duplex | Full duplex |
Mechanical data | Material data
| housing | PUR |
| Locking material | Brass |
| Coating locking | chrome-plated |
Mechanical data | Mounting data
| Suitable for installation wall thickness min. | 2 mm |
| Suitable for installation wall thickness max. | 5 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
| Operating temperature max. | 85 °C |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
