Cáp PVC 3m có đầu nối M12 female 0° A-code 4 chân

Cáp PVC 3m có đầu nối M12 female 0° A-code 4 chân 7000-12221-6140300

– M12 female 0°, 4 chân, A-code
– Cáp có chiều dài 3m
– inserted, screwed
– IP67, IP66K, IP65

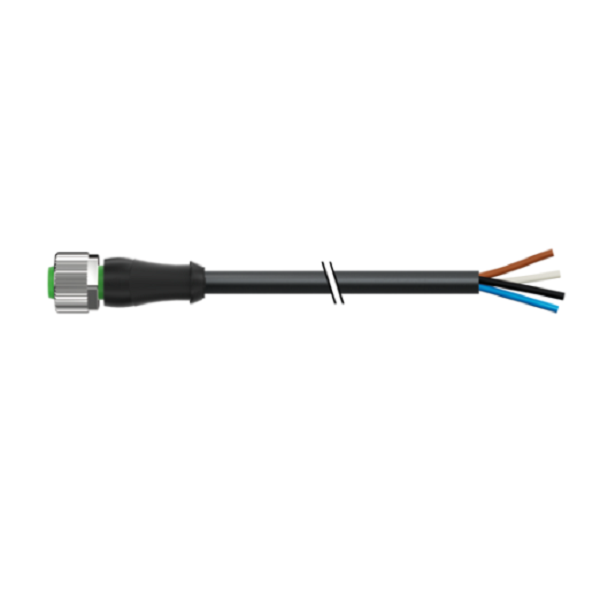

Cáp PVC 3m có đầu nối M12 female 0° A-code 4 chân 7000-12221-6140300: là dây cáp M12 female 0°, A-code của hãng Murrelektronik
(PVC 4×0.34 bk UL/CSA 3m)

– M12 female 0°, 4 chân, A-code
– Cáp có chiều dài 3m
– inserted, screwed

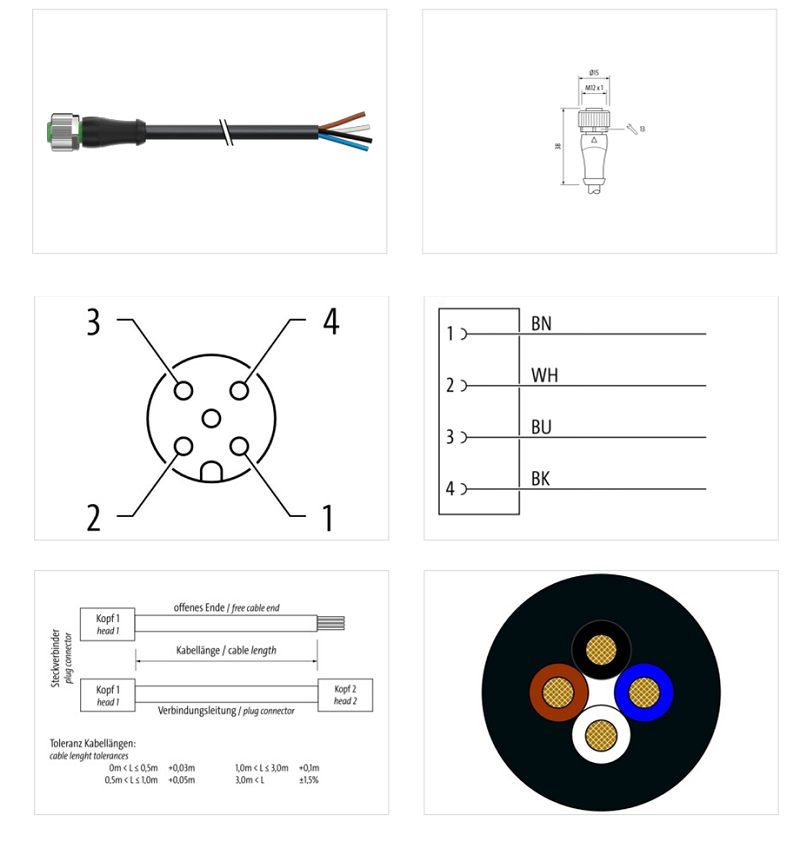

Cáp PVC 3m có đầu nối M12 female 0° A-code 4 chân 7000-12221-6140300 - DETAIL

– Vỏ bọc chống dầu và bụi bẩn tốt

Thông số kỹ thuật – Cáp PVC 3m có đầu nối M12 female 0° A-code 4 chân 7000-12221-6140300

Cable length	3,00 m

Side 1

Family construction form	M12
No. of poles	4
Coding	A
Gender	female
Mounting method	inserted, screwed
Threaded hole	M12 x 1
Tightening torque	0,6 Nm
Width across flats	SW13
Cable outlet	straight
suitable for corrugated tube (internal Ø)	10 mm
Material	PUR
Material contact	Copper alloy
Coating contact	gold plated
Degree of protection (EN IEC 60529)	IP67, IP66K, IP65

Side 2

Family construction form	free cable end
Stripping length (jacket)	20 mm

Electrical data | Supply

Operating voltage AC max.	250 V
Operating voltage DC max.	250 V
Current operating per contact max.	4 A

Diagnostics

Status indication LED	No

Installation | Connection

Gender	female
Mounting set	M12 x 1

Device protection | Electrical

Degree of protection (EN IEC 60529)	IP67, IP66K, IP65
Additional condition protection degree	inserted, screwed
Pollution Degree	3
Rated surge voltage	2,5 kV
Material group (IEC 60664-1)	I

Mechanical data | Material data

Mechanical data | Mounting data

Mounting method	inserted, screwed, Shaking protection

Environmental characteristics | Climatic

Operating temperature min.	-30 °C
Operating temperature max.	85 °C
Additional condition temperature range	depending on cable quality

Important installation notes

Note on bending radius	Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief	Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

Conformity

Product standard	EN IEC 61076-2-101 (M12)
