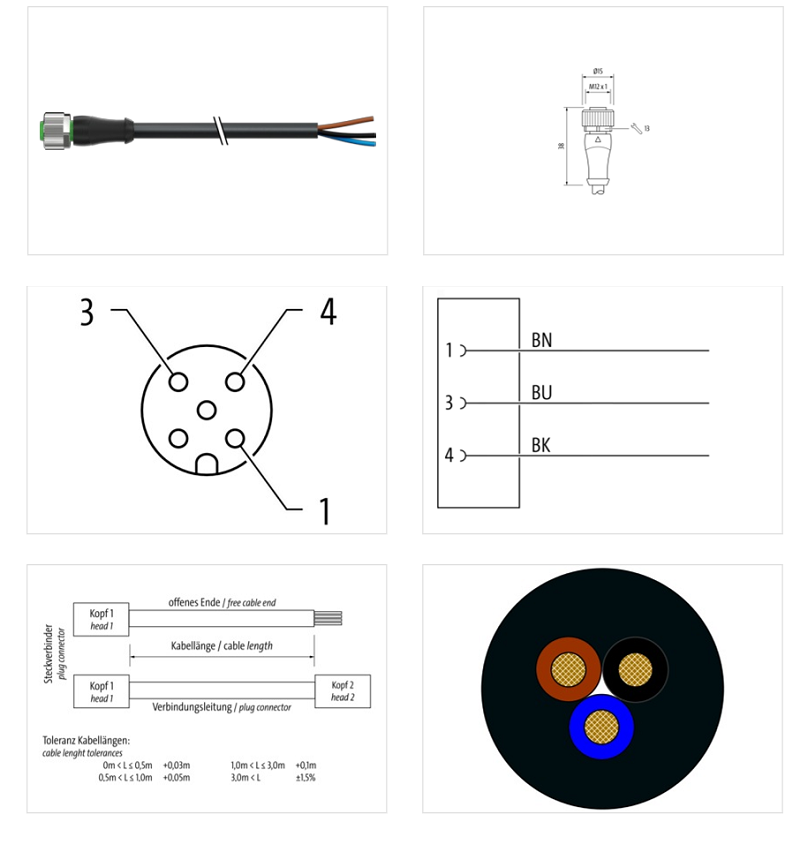

Cáp PVC 20m có đầu nối M12 female 0° A-code 3 cực 7000-12181-6132000
– PVC 3×0.34 bk UL/CSA 20m
– M12 female 0°, 3 chân, A-code, chiều dài cáp 20m
– inserted, screwed
– IP67, IP66K, IP65
Cáp PVC 20m có đầu nối M12 female 0° A-code 3 cực 7000-12181-6132000: là cáp dùng để truyền tín hiệu từ các cảm biến/thiết bị ngoại vi về tủ điều khiển trung tâm trong môi trường công nghiệp
– PVC 3×0.34 bk UL/CSA 20m
– M12 female 0°, 3 chân, A-code, chiều dài cáp 20m
– inserted, screwed
– Vỏ bọc có khả năng chống hóa chất và dầu tốt
Thông số kỹ thuật – Cáp PVC 20m có đầu nối M12 female 0° A-code 3 cực 7000-12181-6132000
| Cable length | 20,00 m |
|---|
| Family construction form | M12 |
|---|---|
| No. of poles | 3 |
| Coding | A |
| Gender | female |
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW13 |
| Cable outlet | straight |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Material | PUR |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
| Family construction form | free cable end |
|---|---|
| Stripping length (jacket) | 20 mm |
| Operating voltage AC max. | 250 V |
|---|---|
| Operating voltage DC max. | 250 V |
| Current operating per contact max. | 4 A |
| Status indication LED | No |
|---|
| Gender | female |
|---|---|
| Mounting set | M12 x 1 |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
|---|---|
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 2,5 kV |
| Material group (IEC 60664-1) | I |
| Screw connection | Zinc die-casting |
|---|---|
| Coating of fitting | nickel plated |
| Locking material | Zinc die-casting |
| Coating locking | Nickeled |
| Gasket | FKM |
| Mounting method | inserted, screwed, Shaking protection |
|---|
| Operating temperature min. | -30 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
|---|---|
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Product standard | EN IEC 61076-2-101 (M12) |
|---|
