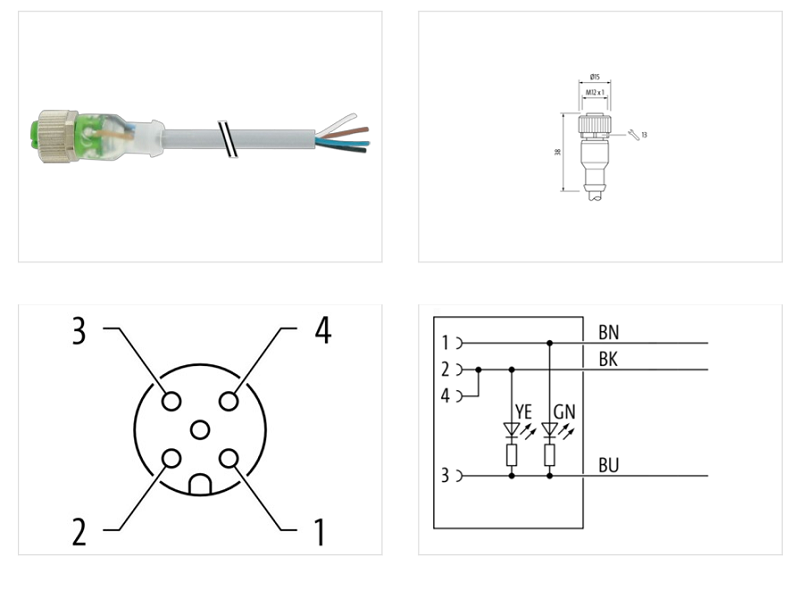

Cáp PUR dài 5m 1 đầu nối M12 female 0° A-code có LED 7000-12281-2330500
– Là đầu nối 0°, có sẵn cáp dài 5m
– M12 female, 3 chân, A-code
– Screwed terminal
– Có LED báo trạng thái
– IP65, IP66K, IP67
Cáp PUR dài 5m 1 đầu nối M12 female 0° A-code có LED 7000-12281-2330500: đầu nối 0° có sẵn cáp dài 5m, M12, 3 chân, female, A-code
– PUR 3×0.34 gy UL/CSA+drag ch. 5m
– Cáp có thể hoạt động ổn định trong tình trạng bị uốn cong và kéo dài liên tục
– Có LED báo trạng thái ( X2 LED PNP)
– Vỏ nhựa có khả năng chống chịu hóa chất và dầu tốt
Thông số kỹ thuật – Cáp PUR dài 5m 1 đầu nối M12 female 0° A-code có LED 7000-12281-2330500
| Cable length | 5,00 m |
|---|
| Family construction form | M12 |
|---|---|
| No. of poles | 4 |
| Coding | A |
| Gender | female |
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW13 |
| Cable outlet | straight |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Material | PUR |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
| Family construction form | free cable end |
|---|---|
| Stripping length (jacket) | 20 mm |
| Operating voltage DC | 24 V |
|---|---|
| Operating voltage DC min. | 18 V |
| Operating voltage DC max. | 30 V |
| Current operating per contact max. | 4 A |
| Operating voltage DC max. (UL-listed) | 30 V |
| Status indication LED | green, yellow |
|---|
| Gender | female |
|---|---|
| Mounting set | M12 x 1 |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
|---|---|
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 0,8 kV |
| Material group (IEC 60664-1) | I |
| Screw connection | Zinc die-casting |
|---|---|
| Coating of fitting | nickel plated |
| Locking material | Zinc die-casting |
| Coating locking | Nickeled |
| Mounting method | inserted, screwed, Shaking protection |
|---|
| Operating temperature min. | -30 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
|---|---|
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Product standard | EN IEC 61076-2-101 (M12) |
|---|
