Cáp PUR dài 3m có đầu nối M12 female 0° A-code 8 chân

Cáp PUR dài 3m có đầu nối M12 female 0° A-code 8 chân 7000-17041-2950300

– PUR 8×0.25 gy UL/CSA+drag ch. 3m
– M12, A-code, 8 chân, Female straight
– inserted, screwed
– IP65, IP66K, IP67

Cáp PUR dài 3m có đầu nối M12 female 0° A-code 8 chân 7000-17041-2950300: là một dây cáp kết nối tín hiệu có sẵn đầu nối dùng trong công nghiệp

– PUR 8×0.25 gy UL/CSA+drag ch. 3m
– M12, A-code, 8 chân, Female straight (thẳng), có cáp dài 3m

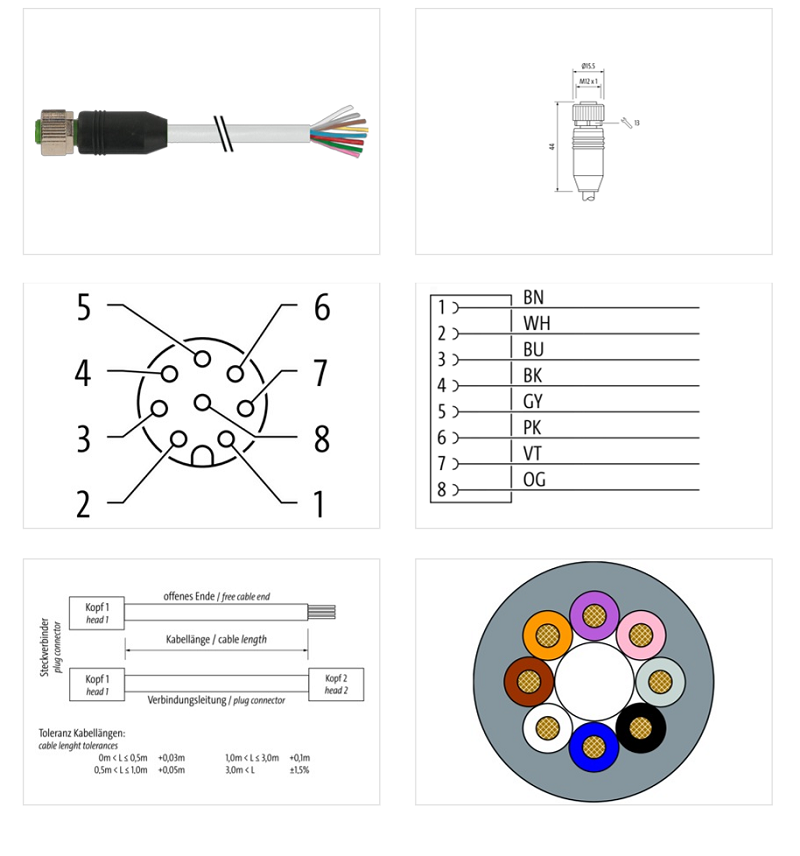

Cáp PUR dài 3m có đầu nối M12 female 0° A-code 8 chân 7000-17041-2950300 - DETAIL

– Vỏ nhựa có khả năng chống dầu và hóa chất tốt

Thông số kỹ thuật – Cáp PUR dài 3m có đầu nối M12 female 0° A-code 8 chân 7000-17041-2950300

Cable length	3,00 m

Side 1

Side 2

Family construction form	free cable end
Stripping length (jacket)	60 mm

Electrical data | Supply

Operating voltage AC max.	30 V
Operating voltage DC max.	30 V
Current operating per contact max.	2 A

Diagnostics

Status indication LED	No

Installation | Connection

Mounting set	M12 x 1

Device protection | Electrical

Degree of protection (EN IEC 60529)	IP67, IP66K, IP65
Additional condition protection degree	inserted, screwed
Pollution Degree	3
Rated surge voltage	0,8 kV
Material group (IEC 60664-1)	I

Mechanical data

Contour for corrugated hose	without

Mechanical data | Material data

Mechanical data | Mounting data

Mounting method	inserted, screwed

Environmental characteristics | Climatic

Operating temperature min.	-25 °C
Operating temperature max.	85 °C
Additional condition temperature range	depending on cable quality

Important installation notes

Note on bending radius	Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief	Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

Conformity

Product standard	EN IEC 61076-2-101 (M12)
