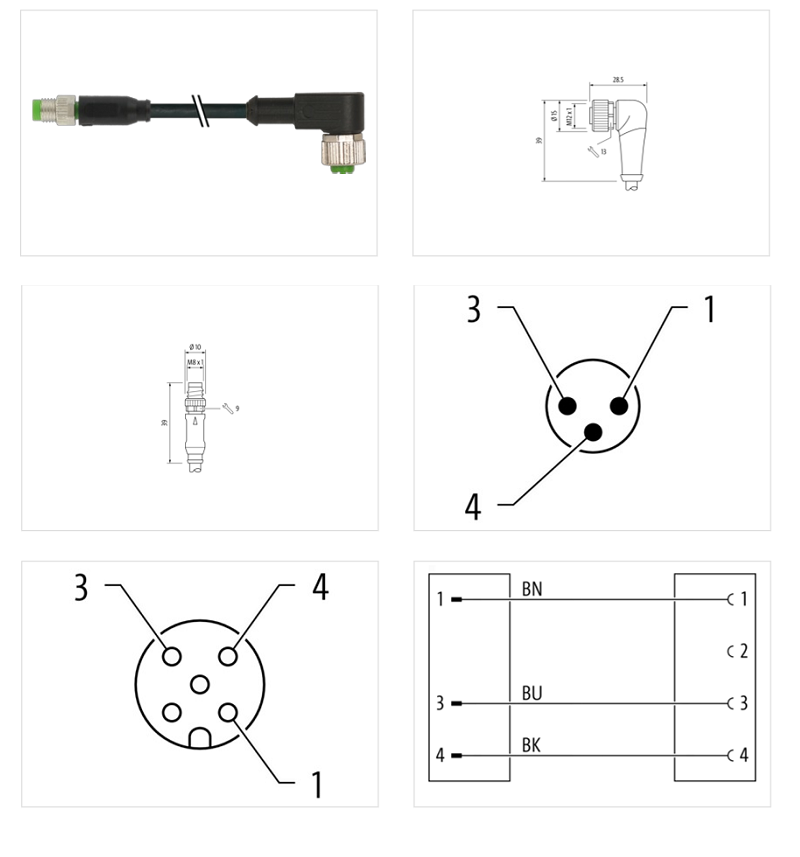

Cáp PUR dài 3m 2 đầu nối M8 male 0° / M12 female 90° A-code 3 cực 7000-88261-6300300
– M8 (male 0°) – M12 (female 90°), có sẵn cáp dài 3m
– 3 chân, A-code
– Inserted, screwed
– IP67, IP66K, IP65
Cáp PUR dài 3m 2 đầu nối M8 male 0° / M12 female 90° A-code 3 cực 7000-88261-6300300: là cáp kết nối trung gian của Murrelektronik để truyền tín hiệu trong môi trường tự động hóa công nghiệp khắc nghiệt
– PUR 3×0.25 bk UL/CSA+drag ch. 3m
– M8 male 0° – M12 female 90°, 3 chân, A-code
– Dùng được trong các ứng dụng robot, CNC, chịu uốn và chuyển động linh hoạt.
– Vỏ học có khả năng chống dầu và hóa chất tốt
Thông số kỹ thuật – Cáp PUR dài 3m 2 đầu nối M8 male 0° / M12 female 90° A-code 3 cực 7000-88261-6300300
| Cable length | 3,00 m |
|---|
| Family construction form | M8 |
|---|---|
| No. of poles | 3 |
| Coding | A |
| Gender | male |
| Mounting method | inserted, screwed |
| Threaded hole | M8 x 1 |
| Tightening torque | 0,4 Nm |
| Width across flats | SW9 |
| Cable outlet | straight |
| suitable for corrugated tube (internal Ø) | 6,5 mm |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Family construction form | M12 |
|---|---|
| No. of poles | 3 |
| Coding | A |
| Gender | female |
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW13 |
| Cable outlet | angled |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Operating voltage AC max. | 50 V |
|---|---|
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 4 A |
| Status indication LED | No |
|---|
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
|---|---|
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
| housing | PUR |
|---|---|
| Locking material | Zinc die-casting |
| Coating locking | Nickeled |
| Gasket | FKM |
| Mounting method | inserted, screwed, Shaking protection |
|---|
| Operating temperature min. | -30 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
|---|---|
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Product standard | EN IEC 61076-2-101 (M12), EN IEC 61076-2-114 (M8) |
|---|
