Cáp PUR dài 20m có đầu nối van form A - header

Cáp PUR dài 20m có đầu nối van form A 7000-18021-6362000

– MSUD valve plug form A 18mm
– Cáp PUR 3×0.75 bk UL/CSA + drag chain
– Chiều dài 20m
– Màu đen

Cáp PUR dài 20m có đầu nối van form A 7000-18021-6362000 của Murrelektronik

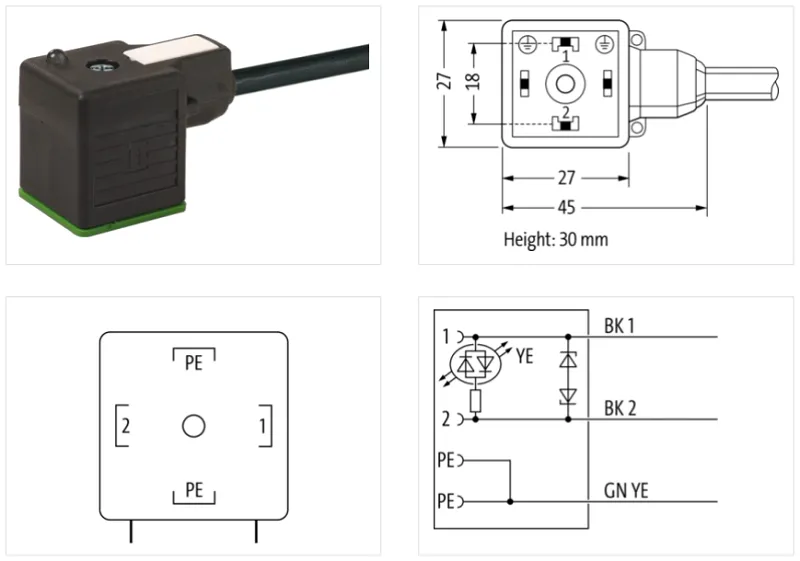

Cáp PUR dài 20m có đầu nối van form A - detail

  • MSUD valve plug form A 18mm
  • Cáp PUR 3×0.75 bk UL/CSA + drag chain
  • Chiều dài 20m
  • Open-ended wires
  • Chịu môi trường công nghiệp
  • Màu đen

Sản phẩm tương tự

Cable length 20,00 m

Side 1

Family construction form Valve connector form A
No. of poles 4
Gender female
Mounting method inserted, screwed
Threaded hole M3x31
Tightening torque 0,4 Nm
Material PBT
Degree of protection (EN IEC 60529) IP67

Electrical data

Drop-out delay time max. 20 ms

Electrical data | Supply

Operating voltage AC 24 V
Operating voltage AC min. 19,2 V
Operating voltage AC max. 28,8 V
Operating voltage DC 24 V
Operating voltage DC min. 18 V
Operating voltage DC max. 30 V
Current operating per contact max. 4 A
Cut-off peak voltage max. 55 V
Current consumption max. 15 mA

Diagnostics

Status indication LED yellow

Installation | Connection

Mounting set M3x31

Device protection | Electrical

Additional condition protection degree inserted, screwed
Pollution Degree 3
Additional suppressor Diode, Z-Diode
Rated surge voltage 0,8 kV
Material group (IEC 60664-1) I

Mechanical data | Material data

Color housing black
Screw connection Steel
Coating of fitting galvanized
Locking material Steel
Coating locking galvanized
Gasket PUR

Mechanical data | Mounting data

Mounting method inserted, screwed

Environmental characteristics | Climatic

Operating temperature min. -25 °C
Operating temperature max. 85 °C
Additional condition temperature range depending on cable quality

Important installation notes

Note on bending radius Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties
