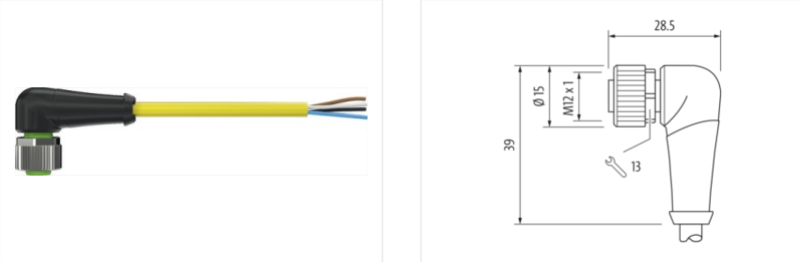

Cáp PUR dài 15m có đầu nối M12 female 90° A-code 4 chân 7000-12341-0341500
– PUR 4×0.34 ye UL/CSA+drag ch. 15m
– M12 cái (90°), 4 chân, A-code, chiều dài cáp 15m
– Inserted, screwed
– IP65, IP66K, IP67
Cáp PUR dài 15m có đầu nối M12 female 90° A-code 4 chân 7000-12341-0341500: là dây cáp có đầu nối loại M12, female (đầu nối cái), 90°, 4 chân, A-code
– PUR 4×0.34 ye UL/CSA+drag ch. 15m
– inserted, screwed
– Vỏ bọc chịu dầu và chống mài mòn, phù hợp dùng trong drag chain (xích kéo)
Thông số kỹ thuật- Cáp PUR dài 15m có đầu nối M12 female 90° A-code 4 chân 7000-12341-0341500
| Cable length | 15,00 m |
Side 1
| Family construction form | M12 |
| No. of poles | 4 |
| Coding | A |
| Gender | female |
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW13 |
| Cable outlet | angled |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Material | PUR |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
Side 2
| Family construction form | free cable end |
| Stripping length (jacket) | 20 mm |
Electrical data | Supply
| Operating voltage AC max. | 250 V |
| Operating voltage DC max. | 250 V |
| Current operating per contact max. | 4 A |
Diagnostics
| Status indication LED | No |
Installation | Connection
| Gender | female |
| Mounting set | M12 x 1 |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 2,5 kV |
| Material group (IEC 60664-1) | I |
