Cáp PUR dài 10m có đầu nối M12 female 90° A-code with LED

  • M12 female 90° A-coded: Có LED.
  • Cáp PUR 4×0.34: drag chain 10m.
  • Tiêu chuẩn an toàn UL/CSA
  • Ứng dụng: Trong tự động hóa: sensor, actuator…

Cáp PUR dài 10m có đầu nối M12 female 90° A-code with LED 4 cực 7000-12421-6341000 của Murrelektronik là cáp tín hiệu có LED báo trạng thái, đầu nối bẻ góc 90°

Cáp PUR dài 10m có đầu nối M12 female 90° A-code with LED - body 1

  • M12 female 90° A-coded: Có LED.
  • Cáp PUR 4×0.34: drag chain 10m.

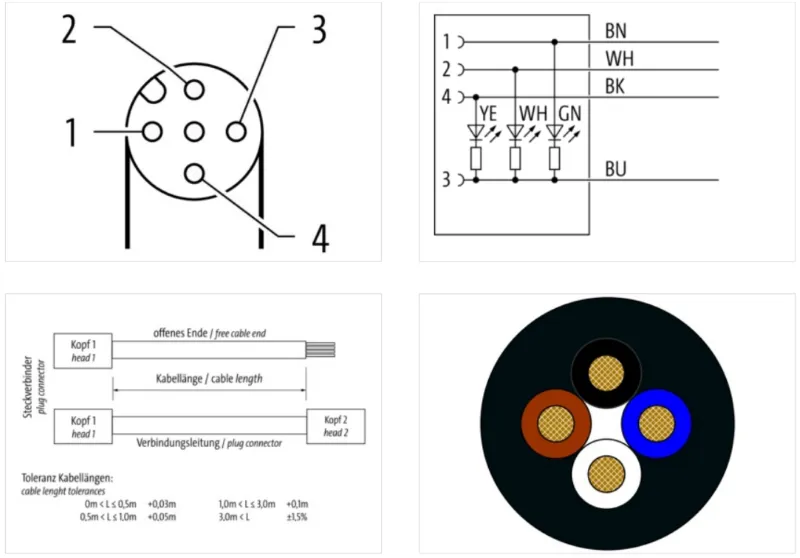

Cáp PUR dài 10m có đầu nối M12 female 90° A-code with LED - body 2

  • Tiêu chuẩn an toàn UL/CSA
  • Ứng dụng: Trong tự động hóa: sensor, actuator…

Sản phẩm tương tự

Thông số kỹ thuật

Cable length 10,00 m

Side 1

Family construction form M12
No. of poles 4
Coding A
Gender female
Mounting method inserted, screwed
Threaded hole M12 x 1
Tightening torque 0,6 Nm
Width across flats SW13
Cable outlet angled
suitable for corrugated tube (internal Ø) 10 mm
Material PUR
Material contact Copper alloy
Coating contact gold plated
Degree of protection (EN IEC 60529) IP67, IP66K, IP65

Side 2

Family construction form free cable end
Stripping length (jacket) 20 mm

Electrical data | Supply

Operating voltage DC 24 V
Operating voltage DC min. 18 V
Operating voltage DC max. 30 V
Current operating per contact max. 4 A
Operating voltage DC max. (UL-listed) 30 V

Diagnostics

Status indication LED green, yellow, white

Installation | Connection

Gender female
Mounting set M12 x 1

Device protection | Electrical

Additional condition protection degree inserted, screwed
Pollution Degree 3
Rated surge voltage 0,8 kV
Material group (IEC 60664-1) I

Mechanical data | Material data

Screw connection Zinc die-casting
Coating of fitting nickel plated
Locking material Zinc die-casting
Coating locking Nickeled

Mechanical data | Mounting data

Mounting method inserted, screwed, Shaking protection

Environmental characteristics | Climatic

Operating temperature min. -30 °C
Operating temperature max. 85 °C
Additional condition temperature range depending on cable quality

Important installation notes

Note on bending radius Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

Conformity

Product standard EN IEC 61076-2-101 (M12)
