Cáp PUR dài 1.5m có 2 đầu nối M12 male 0° / M12 female 90° A-code có LED 4 chân 7356-40341-6340150 của Murrelektronik – 4×0.34, chuẩn UL/CSA, dùng cho xích kéo (drag chain)
- Cáp dài 1.5m
- Cáp PUR 4×0.34 màu đen
- Phía đầu nối cái (female) có LED
Cáp PUR dài 1.5m có 2 đầu nối M12 male 0° / M12 female 90° A-code
– Cáp PUR dài 1.5m
– M12 male 0° / M12 female 90° có LED
– 4 cực, A-code
– Drag chain
– Chuẩn UL/CSA
| Cable length | 1,50 m |

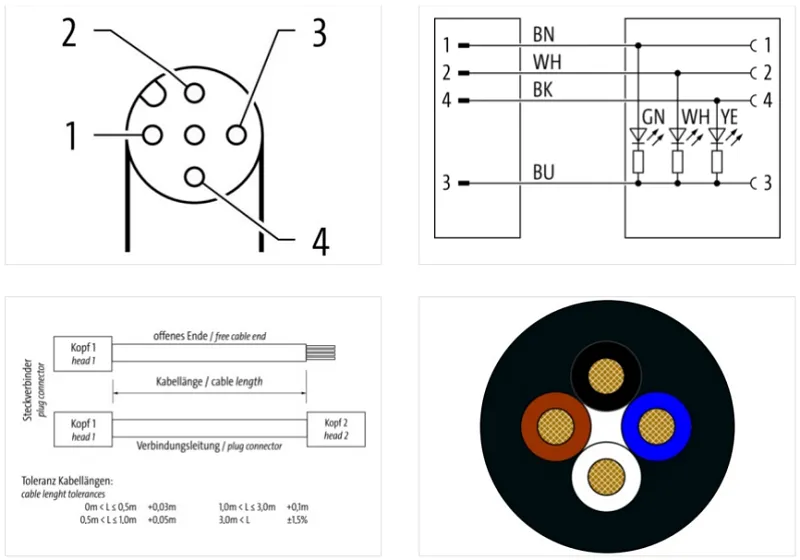

Side 1
| Family construction form | M12 |
| No. of poles | 4 |
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW13 |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
Side 2
| Family construction form | M12 |
| No. of poles | 4 |
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Coating contact | gold plated |
Electrical data | Supply
| Operating voltage DC | 24 V |
| Operating voltage DC min. | 18 V |
| Operating voltage DC max. | 30 V |
| Current operating per contact max. | 4 A |
| Operating voltage DC max. (UL-listed) | 30 V |
Diagnostics
| Status indication LED | green, yellow, white |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 0,8 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| housing | PUR |
| Locking material | Zinc die-casting |
| Coating locking | Nickeled |
| Gasket | FKM |
Mechanical data | Mounting data
| Mounting method | inserted, screwed |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
Conformity
| Product standard | EN IEC 61076-2-101 (M12) |
