Cáp PUR bọc chống nhiễu dài 0.5m có 2 đầu nối M12 male 0° X-code / RJ45 male 0° 7000-51101-7900050 của Murrelektronik: 4x2xAWG26 shielded, màu xanh lá, UL/CSA
- Length: 0.5 m
- Cable: PUR 4x2xAWG26 shielded, green
- Coding: X-code
Cáp PUR bọc chống nhiễu dài 0.5m có 2 đầu nối M12-RJ45
– Cáp truyền dữ liệu, 0.5m
– M12 male 0° X-code / RJ45 male 0°
– Shielded, PUR
– Chuẩn UL/CSA
| Cable length | 0,50 m |

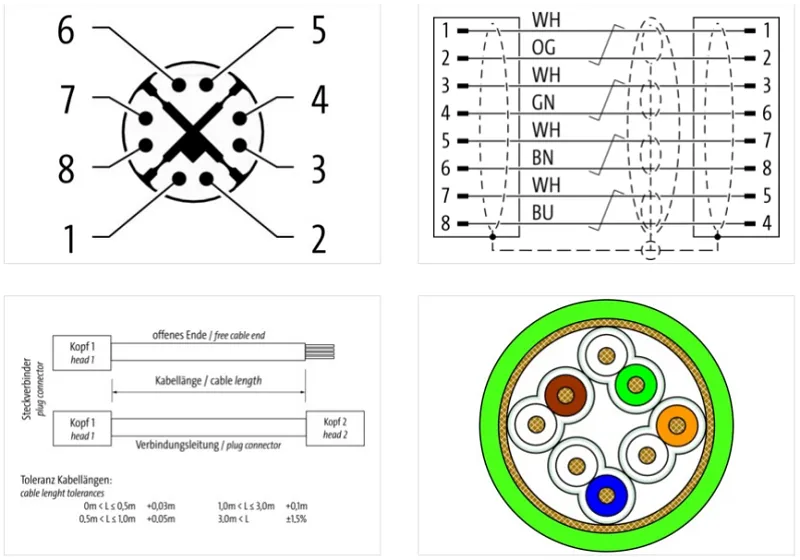

Side 1
| Family construction form | M12 |
| No. of poles | 8 |
| Coding | X |
| Gender | male |
| Mounting method | pluggable, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW13 |
| Cable outlet | straight |
| Material | PUR |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP67, IP66K |
Side 2
| Family construction form | RJ45 |
| No. of poles | 8 |
| Gender | male |
| Mounting method | pluggable |
| Cable outlet | straight |
| Material | PUR |
| Degree of protection (EN IEC 60529) | IP20 |
Electrical data | Supply
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 0,5 A |
Industrial Communication
| Data transmission rate max. | 10 Gbit/s |
| Transfer parameters | CAT6, Class EA (ISO/IEC 11801:2002), (EN 50173-1) |
Diagnostics
| Status indication LED | No |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1 kV |
| Material group (IEC 60664-1) | I |
Mechanical data
| Contour for corrugated hose | without |
Mechanical data | Material data
| Locking material | Zinc die-casting |
| Coating locking | Nickeled |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -30 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
Conformity
| Product standard | EN/IEC 61076-2-109 (M12) |
