– Cáp nguồn M12 Power, L-code, 5 chân, dài 3m
– Vỏ bọc PUR chịu dầu. Dùng cho xích kéo
– Male/female 0° straight

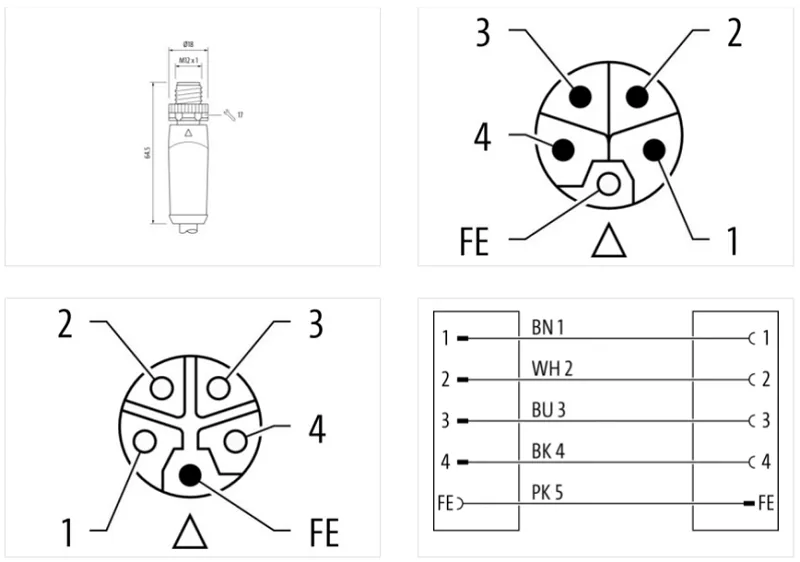

Cáp nguồn PUR 3m có đầu nối M12 Power male 0° / female 0° L-code 5 chân 7000-P4241-P390300 của Murrelektronik: cáp dài 3m, PUR 5×2.5mm², màu xám, dùng cho xích kéo

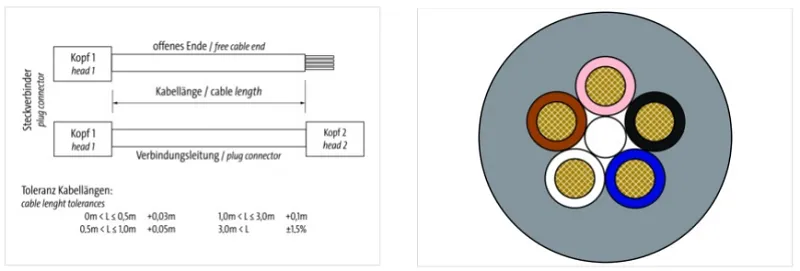

| Cable length | 3,00 m |
Side 1
| Family construction form | M12P |
| No. of poles | 5 |
| Coding | L |
| Gender | male |
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW17 |
| Cable outlet | straight |
| suitable for corrugated tube (internal Ø) | 16,4 mm |
| Material | PUR |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67, IP69K |
Side 2
| Family construction form | M12P |
| No. of poles | 5 |
| Coding | L |
| Gender | female |
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW17 |
| Cable outlet | straight |
| suitable for corrugated tube (internal Ø) | 16,4 mm |
| Material | PUR |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67, IP69K |
Electrical data | Supply
| Operating voltage DC max. | 63 V |
| Current operating per contact max. | 16 A |
Installation | Connection
| Width across flats | SW17 |
| Mating cycles min. | 100 |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP65, IP67, IP66K, IP69K |
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| housing | PUR |
| Screw connection | Brass |
| Coating of fitting | nickel plated |
| Gasket | FKM |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -30 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
Conformity
| Product standard | EN IEC 61076-2-111 |
