– Cáp nguồn 5m 4 cực
– Đầu Mini 7/8″ male 0° / female 0°
– Vỏ PUR đen UL/CSA
– Dòng đến 9A
Cáp nguồn dài 5m 2 đầu nối Mini (7/8) – Male (Ext.) 0°/Female 0° 4 cực 7700-A4A01-UMC0500 của Murrelektronik: cấp nguồn công suất. Vỏ PUR đen, chuẩn UL/CSA, IP68. Phù hợp kết nối thiết bị công nghiệp
| Cable length | 5,00 m |

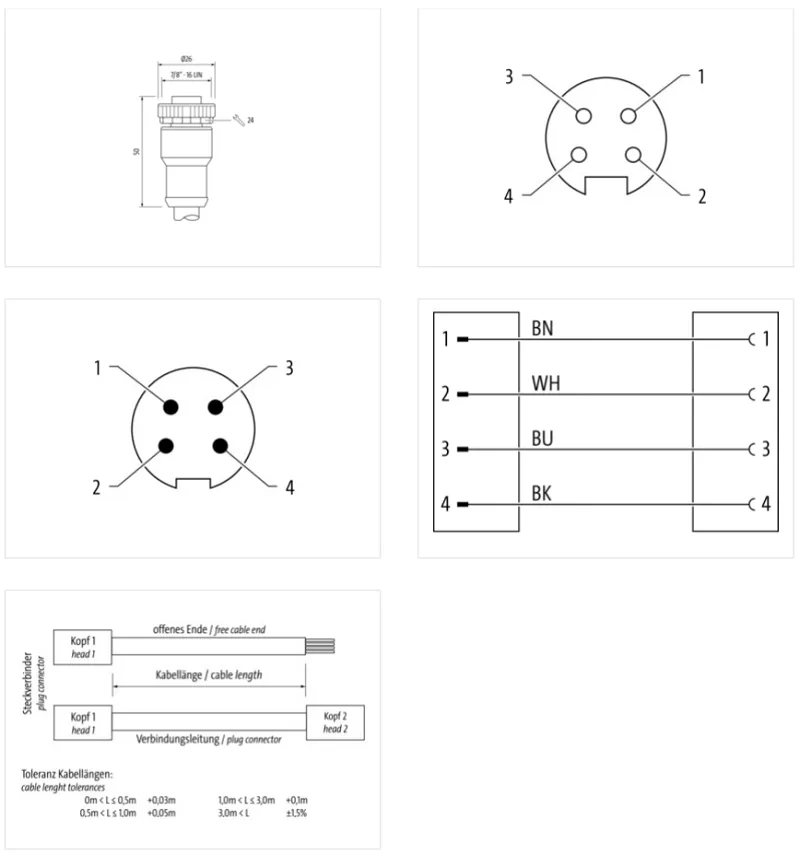

Side 1
| Family construction form | 7/8″ |
| Threaded hole | 7/8″ |
| Tightening torque | 1,5 Nm |
| Width across flats | SW24 |
Side 2
| Threaded hole | 7/8″ |
| Tightening torque | 1,5 Nm |
Electrical data | Supply
| Operating voltage AC max. | 600 V |
| Operating voltage DC max. | 600 V |
| Current operating per contact max. | 9 A |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP68 |
| Additional condition protection degree | inserted, screwed |
Mechanical data | Material data
| housing | PUR |
| Locking material | Zinc die-casting |
| Coating locking | Nickeled |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
| Operating temperature max. | 80 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
