Cáp mạng chống nhiễu dài 10m có đầu nối M12 female

– Cáp dữ liệu có shield dài 10 mét
– Đầu nối cái M12 90°, B-code
– Vỏ PUR tím, cho drag chain

Cáp mạng chống nhiễu dài 10m có đầu nối M12 female 90° B-code 7000-14071-8411000 của Murrelektronik là cáp dữ liệu PUR màu tím, có shield, cho drag chain, phù hợp truyền dữ liệu công nghiệp, đầu nối B-code

Cáp mạng chống nhiễu dài 10m có đầu nối M12 female - detail1

  • Chiều dài cáp 10 mét
  • Đầu nối cái M12 90°, B-code
  • Có shield

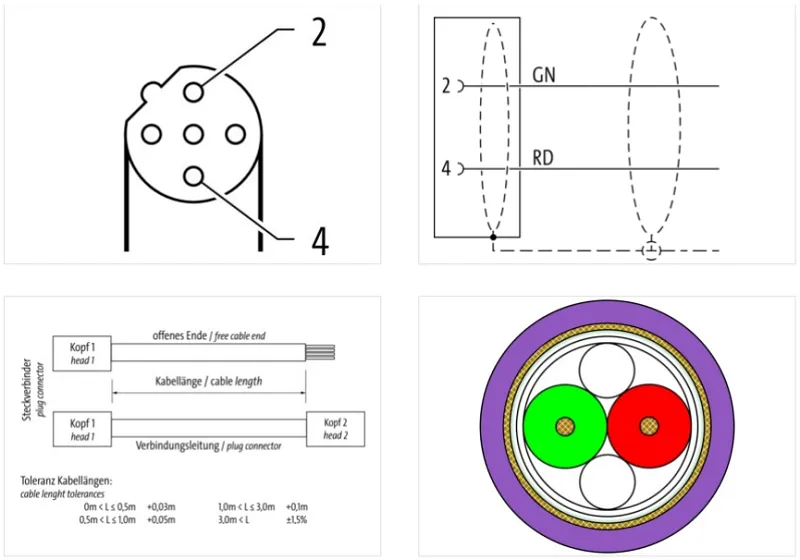

Cáp mạng chống nhiễu dài 10m có đầu nối M12 female - detail2

  • Vỏ PUR màu tím, cho drag chain
  • Cấp bảo vệ IP65 / IP66K / IP67

Cáp khác

Cable length 10,00 m

Side 1

Family construction form M12
No. of poles 2
Coding B
Mounting method inserted, screwed
Threaded hole M12 x 1
Tightening torque 0,6 Nm
Width across flats SW13
Cable outlet angled
Material PUR
Material contact Copper alloy
Coating contact gold plated
Degree of protection (EN IEC 60529) IP67, IP66K, IP65

Side 2

Family construction form free cable end
Stripping length (jacket) 20 mm

Electrical data | Supply

Operating voltage AC max. 60 V
Operating voltage DC max. 60 V
Current operating per contact max. 4 A
Operating voltage AC (UL-listed) 30 V
Operating voltage DC (UL-listed) 30 V

Diagnostics

Status indication LED No

Installation | Connection

Mounting set M12 x 1

Device protection | Electrical

Additional condition protection degree inserted, screwed
Pollution Degree 3
Rated surge voltage 1,5 kV
Material group (IEC 60664-1) I

Mechanical data

Contour for corrugated hose without

Mechanical data | Material data

Screw connection Zinc die-casting
Coating of fitting nickel plated
Locking material Zinc die-casting
Coating locking Nickeled

Mechanical data | Mounting data

Mounting method inserted, screwed, Shaking protection

Environmental characteristics | Climatic

Operating temperature min. -30 °C
Operating temperature max. 85 °C
Additional condition temperature range depending on cable quality

Important installation notes

Note on bending radius Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

Conformity

Product standard EN IEC 61076-2-101 (M12)
