– 2 đầu nối RJ45 male-male 0°
– Cáp data dài 5m, shielded

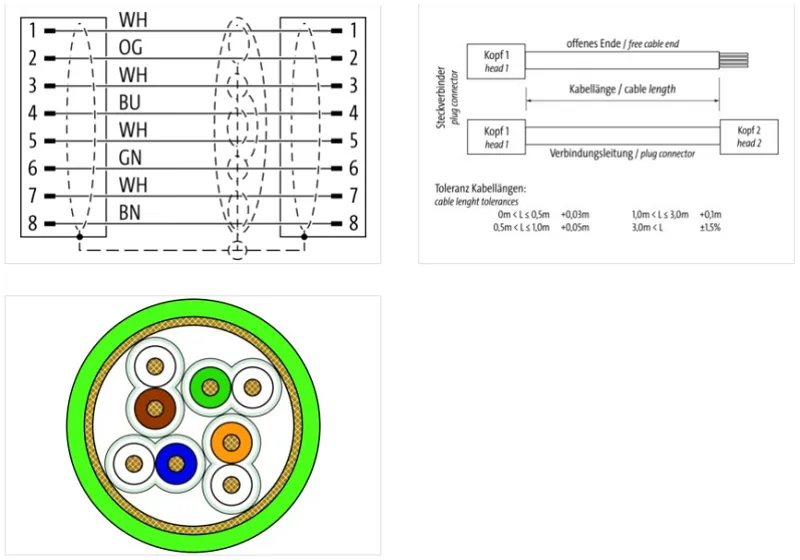

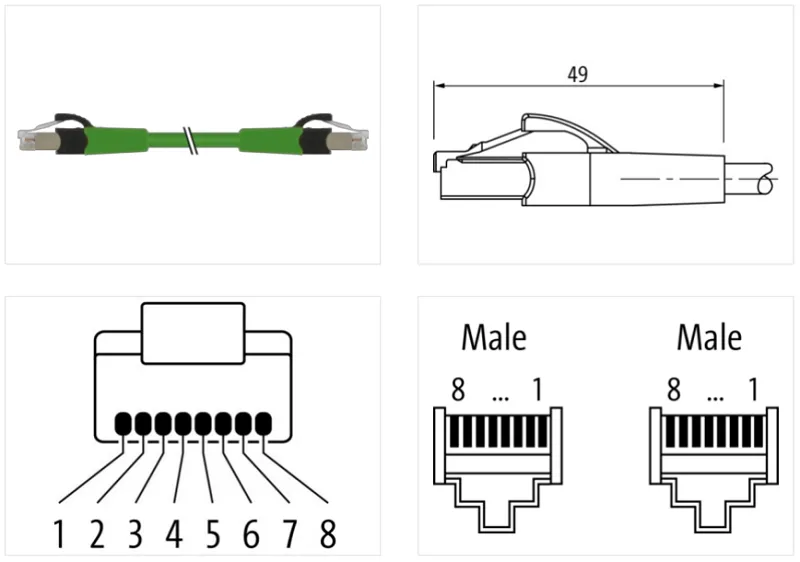

Cáp mạng 2 đầu nối RJ45 male 0° / RJ45 male 0° 7000-74712-4780200 của Murrelektronik là cáp data RJ45 male 0° – RJ45 male 0° có shield. Dùng để truyền dữ liệu mạng Ethernet công nghiệp
Đặc điểm:
| Cable length | 2,00 m |
Side 1
| Family construction form | RJ45 |
| No. of poles | 8 |
| Gender | male |
| Mounting method | inserted |
| Cable outlet | straight |
| Degree of protection (EN IEC 60529) | IP20 |
Side 2
| Family construction form | RJ45 |
| No. of poles | 8 |
| Gender | male |
| Mounting method | inserted |
| Cable outlet | straight |
| Degree of protection (EN IEC 60529) | IP20 |
Electrical data | Supply
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 1,5 A |
| Operating voltage DC max. (UL-listed) | 25 V |
Industrial Communication
| Data transmission rate max. | 10 Gbit/s |
| Transfer parameters | CAT6A |
Diagnostics
| Status indication LED | No |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP20 |
| Additional condition protection degree | inserted |
| Pollution Degree | 3 |
| Rated surge voltage | 1 kV |
| Material group (IEC 60664-1) | I |
Mechanical data
| Contour for corrugated hose | without |
Mechanical data | Material data
| housing | PUR |
| Locking material | PA |
Mechanical data | Mounting data
| Looking techniques | Snap-in connector |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
