Cáp dài 5m có 2 đầu nối M12 male 0° / M12 female 0° A-cod. shielded 8 ruột 7000-48041-2910500
– PUR 8×0.25 shielded gy UL/CSA+drag ch. 5m
– M12 đực 0° – M12 cái 0°, 8 chân, A-code
– Inserted, screwed
– IP65, IP67, IP68
Cáp dài 5m có 2 đầu nối M12 male 0° / M12 female 0° A-cod. shielded 8 ruột 7000-48041-2910500: là một cáp tín hiệu dùng để kết nối hai thiết bị có cổng M12
– PUR 8×0.25 shielded gy UL/CSA+drag ch. 5m
– M12 đực 0° – M12 cái 0°, 8 chân, A-code, chiều dài cáp 5 mét
– Inserted, screwed
– Vỏ nhựa có khả năng chống hóa chất và dầu tốt

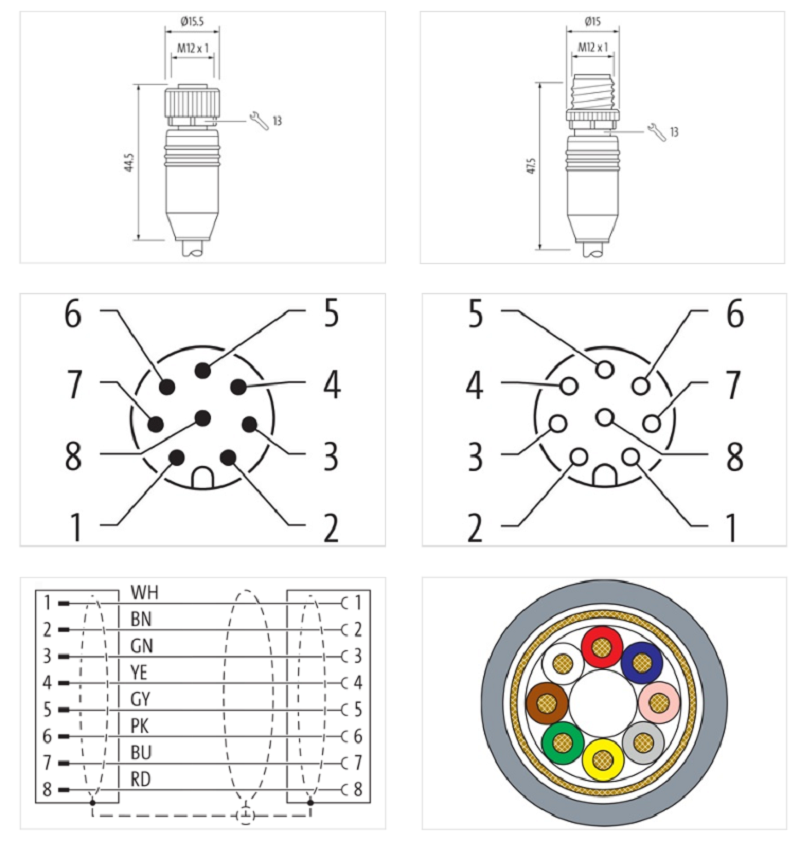

Thông số kỹ thuật – Cáp dài 5m có 2 đầu nối M12 male 0° / M12 female 0° A-cod. shielded 8 ruột 7000-48041-2910500
| Cable length | 5,00 m |
|---|
| Family construction form | M12 |
|---|---|
| No. of poles | 8 |
| Coding | A |
| Gender | male |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW13 |
| Cable outlet | straight |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Family construction form | M12 |
|---|---|
| No. of poles | 8 |
| Coding | A |
| Gender | female |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW13 |
| Cable outlet | straight |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Operating voltage AC max. | 30 V |
|---|---|
| Operating voltage DC max. | 30 V |
| Current operating per contact max. | 2 A |
| Operating voltage AC (UL-listed) | 30 V |
| Operating voltage DC (UL-listed) | 30 V |
| Configuration | fully used |
|---|
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
|---|---|
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 0,8 kV |
| Material group (IEC 60664-1) | I |
| Contour for corrugated hose | without |
|---|
| Color housing | black |
|---|---|
| Color contact carrier | green |
| Material screw connection | Zinc die-casting |
| Coating of fitting | nickel plated |
| Locking material | Zinc die-casting |
| Coating locking | Nickeled |
| Mounting method | inserted, screwed, Shaking protection |
|---|
| Operating temperature min. | -30 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
|---|---|
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Product standard | EN IEC 61076-2-101 (M12) |
|---|
