– Cáp data dài 1 m
– M8 male 0° A-code / RJ45 male 0°
– Shielded, PUR
– Ứng dụng: xích kéo (drag chain)
– Chuẩn UL/CSA

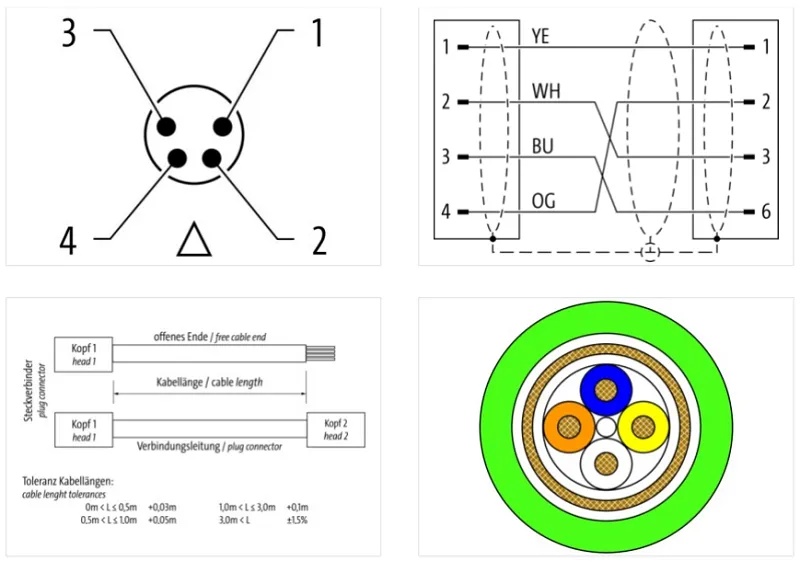

Cáp dài 1m bọc chống nhiễu có 2 đầu nối M8 male 0° A-code / RJ45 male 0° 7000-89721-7910100 của Murrelektronik: PUR 1x4xAWG26 shielded, màu xanh, UL/CSA + drag chain
| Cable length | 1,00 m |
Side 1
| Family construction form | M8 |
| No. of poles | 4 |
| Coding | A |
| Gender | male |
| Mounting method | inserted, screwed |
| Threaded hole | M8 x 1 |
| Tightening torque | 0,4 Nm |
| Width across flats | SW9 |
| Cable outlet | straight |
| suitable for corrugated tube (internal Ø) | 8,5 mm |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
Side 2
| Family construction form | RJ45 |
| No. of poles | 4 |
| Gender | male |
| Mounting method | pluggable |
| Cable outlet | straight |
| Degree of protection (EN IEC 60529) | IP20 |
Electrical data | Supply
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 1,5 A |
Industrial Communication
| Data transmission rate max. | 100 Mbit/s |
| Transfer parameters | CAT5e, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
Device protection | Electrical
| Pollution Degree | 3 |
| Rated surge voltage | 1 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| housing | PUR |
| Color housing | black |
| Color contact carrier | green |
| Locking material | Brass |
| Coating locking | nickel plated |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -30 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
Conformity
| Product standard | EN/IEC 61076-2-104 (M8), EN IEC 60603-7 (RJ45) |
