Cáp dài 10m có đầu nối M12 male 0° / M12 female 0° A-cod. AIDA 5 ruột 7030-40041-1261000
– M12 đực (0°) – M12 cái(0°), 5 chân, A-code, chiều dài cáp 10 mét
– PUR 5×0.34 ye UL/CSA+drag ch. 10m
– Tuân thủ chuẩn AIDA
– Inserted, screwed
– IP65, IP66K, IP67
Cáp dài 10m có đầu nối M12 male 0° / M12 female 0° A-cod. AIDA 5 ruột 7030-40041-1261000: là dây cáp kết nối loại M12, gồm đầu đực (thẳng 0°) và cái (thẳng 0°), 5 chân, A-code, cáp tuân thủ chuẩn AIDA, đảm bảo tương thích, đáng tin cậy, chống nhiễu và đạt độ bền cao khi sử dụng trong môi trường công nghiệp
(PUR 5×0.34 ye UL/CSA+drag ch. 10m)
– Phù hợp cho robot tự động hóa, chịu uốn, kéo tốt
– Có sẵn cáp dài 10 mét, chịu dầu và chống hóa chất tốt

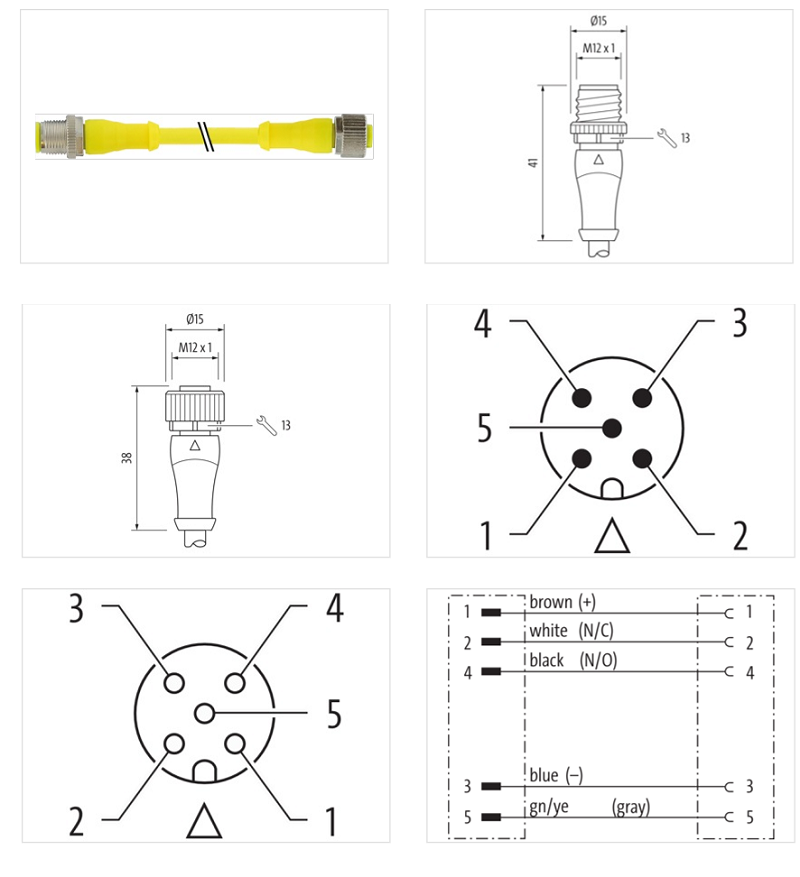

Thông số kỹ thuật – Cáp dài 10m có đầu nối M12 male 0° / M12 female 0° A-cod. AIDA 5 ruột 7030-40041-1261000
| Cable length | 10,00 m |
|---|
| Family construction form | M12 |
|---|---|
| No. of poles | 5 |
| Coding | A |
| Gender | male |
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW13 |
| Cable outlet | straight |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
| Family construction form | M12 |
|---|---|
| No. of poles | 5 |
| Coding | A |
| Gender | female |
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW13 |
| Cable outlet | straight |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
| Operating voltage AC max. | 125 V |
|---|---|
| Operating voltage DC max. | 125 V |
| Current operating per contact max. | 4 A |
| Additional condition protection degree | inserted, screwed |
|---|---|
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
| Material housing | PUR |
|---|---|
| Color housing | yellow |
| Color contact carrier | yellow |
| Material screw connection | Zinc die-casting |
| Coating of fitting | Nickeled |
| Material gasket | FKM |
| Mounting method | inserted, screwed, Shaking protection |
|---|
| Operating temperature min. | -30 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
|---|---|
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Note on mounting | Listed cables are developed see detail specification DIN EN 61076-2-101 with yellow injection part according to the AIDA coloration for cables in security applications., Any additional safety requirements are not explicitly taken into account and therefor |
| Product standard | EN IEC 61076-2-101 (M12) |
|---|
