– Cáp dữ liệu có shield, dài 10 mét
– 2 đầu nối: đầu đực M12 0°, A-code / đầu đực RJ45 0°
– Vỏ TPE xanh, chuẩn CAT5e
– 8 cực
Cáp chống nhiễu dài 10m có 2 đầu nối M12 male 0° A-code / RJ45 male 0° 7700-48521-S4W1000 của Murrelektronik là cáp dữ liệu Ethernet vỏ nhựa TPE ((Thermoplastic Elastomer) màu xanh, có shield, chuẩn CAT5e, phù hợp kết nối mạng trong công nghiệp
| Cable length | 10,00 m |

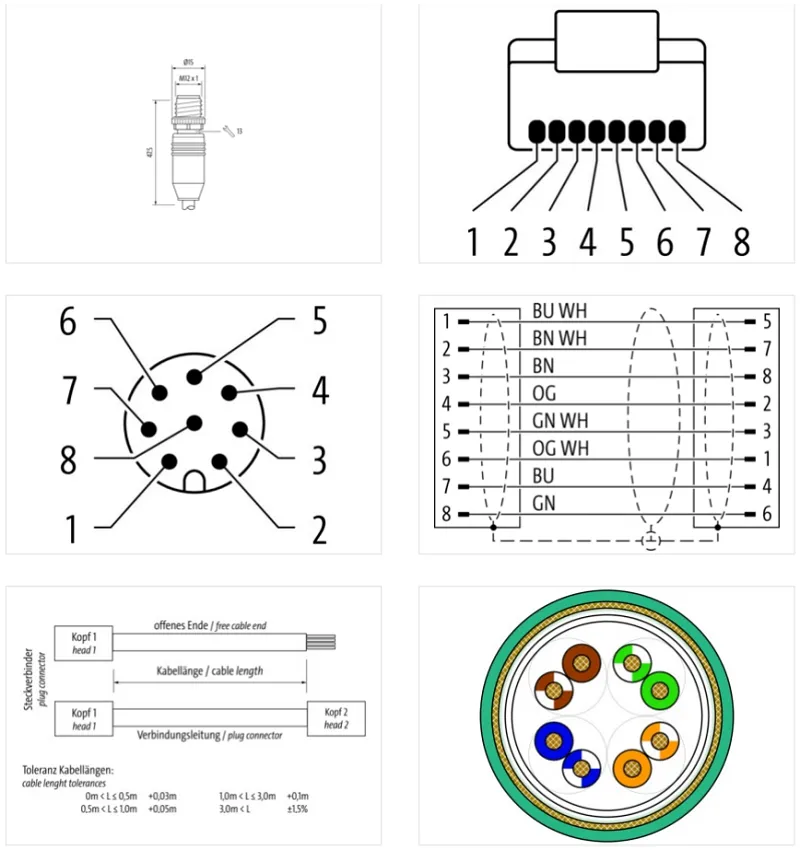

Side 1
| Family construction form | M12 |
| No. of poles | 8 |
| Coding | A |
| Gender | male |
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW13 |
| Cable outlet | straight |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP67 |
Side 2
| Family construction form | RJ45 |
| No. of poles | 8 |
| Mounting method | inserted |
| Cable outlet | straight |
| Degree of protection (EN IEC 60529) | IP20 |
Electrical data | Supply
| Operating voltage DC | 60 V |
| Current operating per contact max. | 1,5 A |
Industrial Communication
| Data transmission rate max. | 1 Gbit/s |
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 2 |
| Rated surge voltage | 0,8 kV |
| Material group (IEC 60664-1) | I |
Mechanical data
| Contour for corrugated hose | without |
Mechanical data | Material data
| Color housing | black |
| Screw connection | Zinc die-casting |
| Coating of fitting | nickel plated |
Environmental characteristics | Climatic
| Operating temperature min. | -30 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
Conformity
| Product standard | EN IEC 61076-2-101 (M12) |
