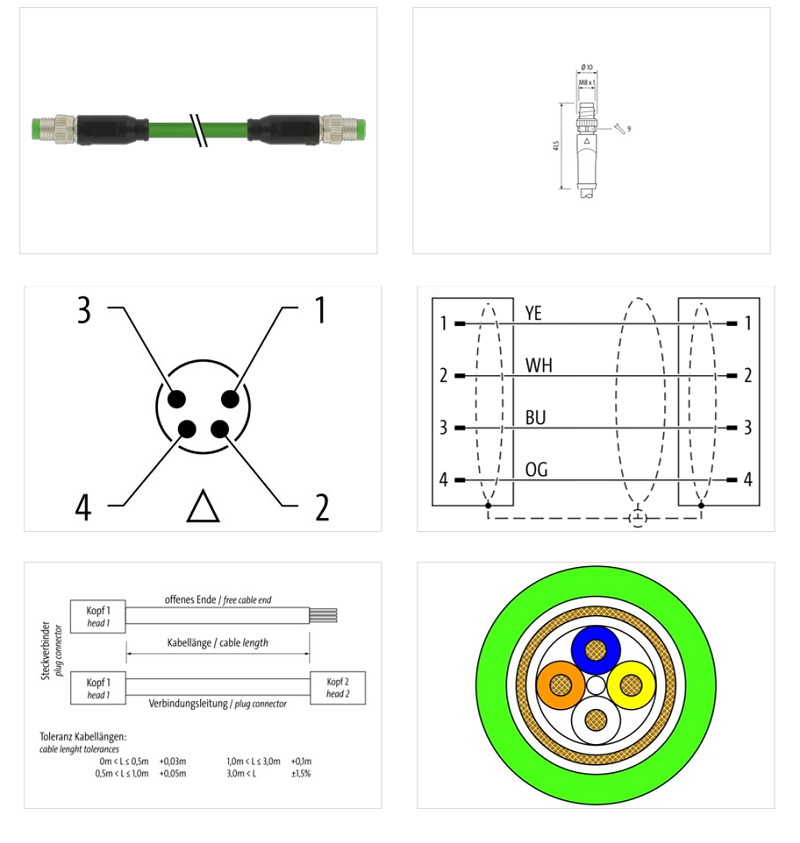

Cáp chống nhiễu 2m có 2 đầu nối M8 male 0° / M8 male 0° A-code 4 chân 7000-89701-7910200
– PUR 1x4xAWG26 shielded gn UL/CSA+drag ch. 2m
– M8 male 0° – M8 male 0°, 4 chân, A-cod, có cáp dài 2m
– inserted, screwed
– IP65, IP67, IP68, IP66K
Cáp chống nhiễu 2m có 2 đầu nối M8 male 0° / M8 male 0° A-code 4 chân 7000-89701-7910200: là một loại cáp bọc chống nhiễu có 2 đầu nối M8
– PUR 1x4xAWG26 shielded gn UL/CSA+drag ch. 2m
– M8 male 0° – M8 male 0°, 4 chân, A-cod, có cáp dài 2m
– Vỏ nhựa có khả năng chống chịu hóa chất và dầu tốt
Thông số kỹ thuật – Cáp chống nhiễu 2m có 2 đầu nối M8 male 0° / M8 male 0° A-code 4 chân 7000-89701-7910200
| Cable length | 2,00 m |
|---|
| Family construction form | M8 |
|---|---|
| No. of poles | 4 |
| Mounting method | inserted, screwed |
| Threaded hole | M8 x 1 |
| Tightening torque | 0,4 Nm |
| Width across flats | SW9 |
| suitable for corrugated tube (internal Ø) | 8,5 mm |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Family construction form | M8 |
|---|---|
| No. of poles | 4 |
| Mounting method | inserted, screwed |
| Threaded hole | M8 x 1 |
| Tightening torque | 0,4 Nm |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Operating voltage DC max. | 60 V |
|---|---|
| Current operating per contact max. | 1,5 A |
| Data transmission rate max. | 100 Mbit/s |
|---|---|
| Transfer parameters | With reference to CAT5, Class D (ISO/IEC 11801) |
| Status indication LED | No |
|---|
| Degree of protection (EN IEC 60529) | IP67, IP68, IP66K, IP65 |
|---|---|
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
| housing | PUR |
|---|---|
| Locking material | Brass |
| Coating locking | nickel plated |
| Mounting method | inserted, screwed, Shaking protection |
|---|
| Operating temperature min. | -30 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
|---|---|
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Product standard | EN IEC 61076-2-114 (M8) |
|---|
