– Cáp tín hiệu có shield dài 10 mét
– Đầu cái M12 0° A-code 5 chân
– Vỏ PUR xám, dùng cho drag chain
Cáp bọc chống nhiễu dài 10m có đầu nối M12 female 0° A-code 5 chân của Murrelektronik: cáp tín hiệu PUR màu xám, có shield, cho xích kéo, đạt chuẩn UL/CSA, phù hợp kết nối cảm biến…
| Cable length | 10,00 m |

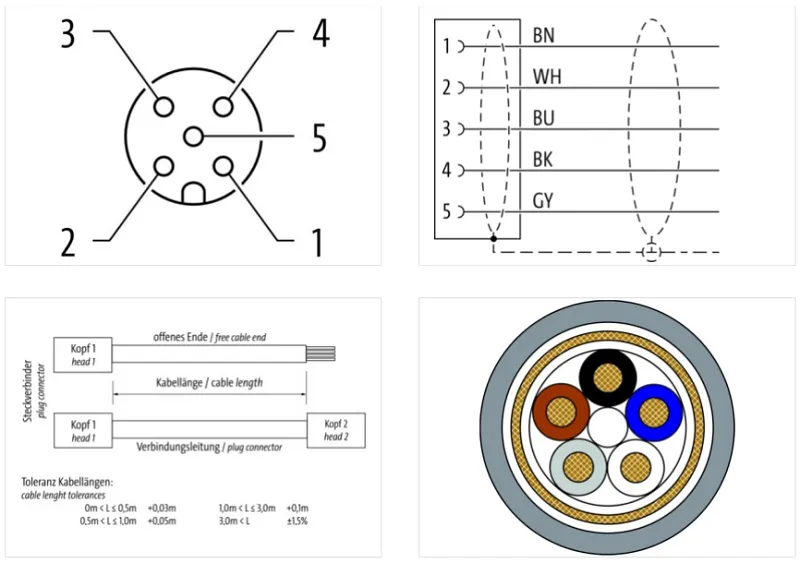

Side 1
| Family construction form | M12 |
| No. of poles | 5 |
| Coding | A |
| Gender | female |
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW13 |
| Cable outlet | straight |
| Material | PUR |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
Side 2
| Family construction form | free cable end |
| Stripping length (jacket) | 20 mm |
Electrical data | Supply
| Operating voltage AC max. | 60 V |
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 4 A |
Installation | Connection
| Gender | female |
| Mounting set | M12 x 1 |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data
| Contour for corrugated hose | without |
Mechanical data | Material data
| Screw connection | Zinc die-casting |
| Coating of fitting | nickel plated |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -30 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
Conformity
| Product standard | EN IEC 61076-2-101 (M12) |
