– 2 đầu nối M12 male 0° / M12 female 0°, A-code 12 cực
– Cáp PUR dài 3m
– Drag chain (dùng cho xích kéo cáp)

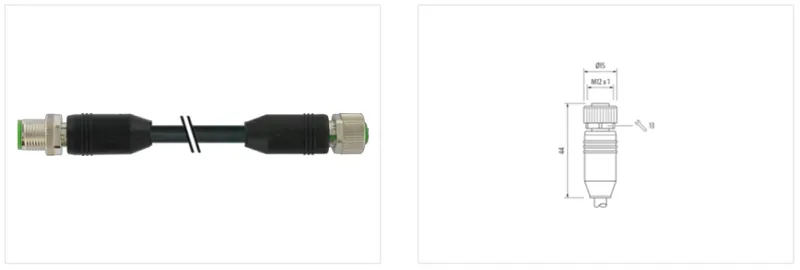

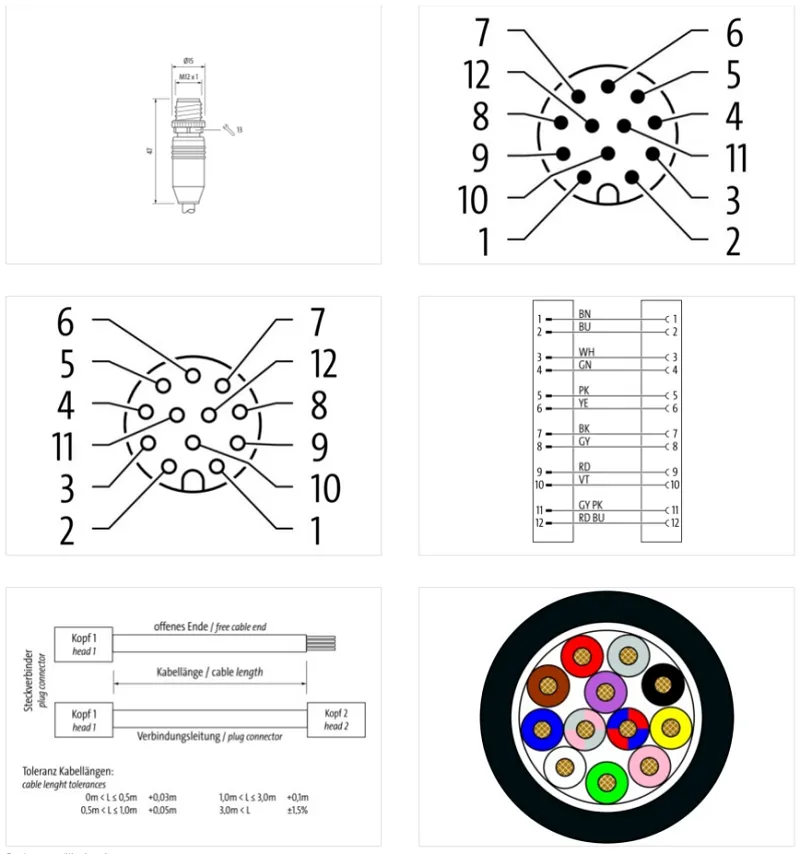

Cáp 2 đầu nối M12 male 0° / M12 female 0° A-code 12 lõi 7000-53001-7050300 của Murrelektronik: cáp PUR 12×0.14 bk UL/CSA+drag ch. dài 3m
Đặc điểm:
| Cable length | 3,00 m |
Side 1-1
| Family construction form | M12 |
| No. of poles | 12 |
| Coding | A |
| Gender | male |
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0.6 Nm |
| Width across flats | SW13 |
| Cable outlet | straight |
| Material | PUR |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
Side 2-2
| Family construction form | M12 |
| No. of poles | 12 |
| Coding | A |
| Gender | female |
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0.6 Nm |
| Width across flats | SW13 |
| Cable outlet | straight |
| Material | PUR |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
Electrical data | Supply
| Operating voltage AC max. | 30 V |
| Operating voltage DC max. | 30 V |
| Current operating per contact max. | 1.5 A |
| Operating voltage AC (UL-listed) | 30 V |
| Operating voltage DC (UL-listed) | 30 V |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 0.8 kV |
| Material group (IEC 60664-1) | II |
Mechanical data
| Contour for corrugated hose | without |
Mechanical data | Material data
| Color housing | black |
| Color contact carrier | green |
| Screw connection | Zinc die-casting |
| Coating of fitting | Nickeled |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -30 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
Conformity
| Product standard | EN IEC 61076-2-101 (M12) |
