Cáp 15m bọc chống nhiễu có đầu nối M12 female 0° A-code

– Đầu nối cái, thẳng
– M12, 8 cực
– Shielded (bọc chống nhiễu)

Cáp 15m bọc chống nhiễu có đầu nối M12 female 0° A-code 8 chân 7000-17121-2911500 của Murrelektronik: có bọc chống nhiễu. Dùng cho xích kéo. Chịu được môi trường nhiều dầu mỡ

Cáp 15m bọc chống nhiễu có đầu nối M12 - detail 1

  • Kết nối: M12 cái (female), thẳng, A-code, 8 cực
  • PUR 8×0.25 mm², shielded
  • Màu dây: Xám (gray)
  • Chiều dài dây: 15 mét

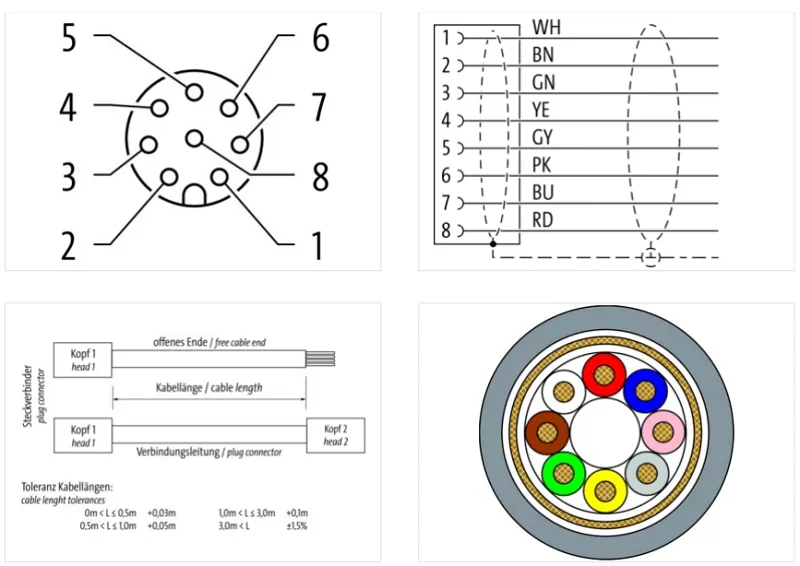

Cáp 15m bọc chống nhiễu có đầu nối M12 - detail 2

  • Tiêu chuẩn: UL/CSA + drag chain
  • Trọng lượng: Khoảng 0.977 kg
  • Xuất xứ: Czech Republic (CZ)

Sản phẩm tương tự

Cable length 15,00 m
Side 1
Family construction form M12
No. of poles 8
Coding A
Gender female
Mounting method inserted, screwed
Threaded hole M12 x 1
Tightening torque 0,6 Nm
Width across flats SW13
Cable outlet straight
Material PUR
Material contact Copper alloy
Coating contact gold plated
Degree of protection (EN IEC 60529) IP67, IP66K, IP65
Side 2
Family construction form free cable end
Stripping length (jacket) 60 mm
Electrical data | Supply
Operating voltage AC max. 30 V
Operating voltage DC max. 30 V
Current operating per contact max. 2 A
Operating voltage AC (UL-listed) 30 V
Operating voltage DC (UL-listed) 30 V
Diagnostics
Status indication LED No
Installation | Connection
Gender female
Mounting set M12 x 1
Device protection | Electrical
Degree of protection (EN IEC 60529) IP67, IP66K, IP65
Additional condition protection degree inserted, screwed
Pollution Degree 3
Rated surge voltage 0,8 kV
Material group (IEC 60664-1) I
Mechanical data
Contour for corrugated hose without
Mechanical data | Material data
Screw connection Zinc die-casting
Coating of fitting nickel plated
Locking material Zinc die-casting
Coating locking Nickeled
Mechanical data | Mounting data
Mounting method inserted, screwed, Shaking protection
Environmental characteristics | Climatic
Operating temperature min. -30 °C
Operating temperature max. 85 °C
Additional condition temperature range depending on cable quality
Important installation notes
Note on bending radius Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
Conformity
Product standard EN IEC 61076-2-101 (M12)
