Cáp 10m bọc chống nhiễu có đầu nối M12 male 0° A-code 8 chân

– Cáp shielded 10m
– Đầu nối M12 male 0° 8 chân A-code
– Vỏ PUR, chống nhiễu
– Dùng cho xích kéo

Cáp 10m bọc chống nhiễu có đầu nối M12 male 0° A-code 8 chân 7000-17081-2911000 của Murrelektronik: đầu nối M12 male 0° A-code 8 cực, cáp bọc chống nhiễu, phù hợp trong môi trường nhiễu điện từ

Cáp 10m bọc chống nhiễu có đầu nối M12 - detail 1

  • Chiều dài cáp: 10m
  • Đầu nối: M12 male 0° A-code
  • Số cực: 8

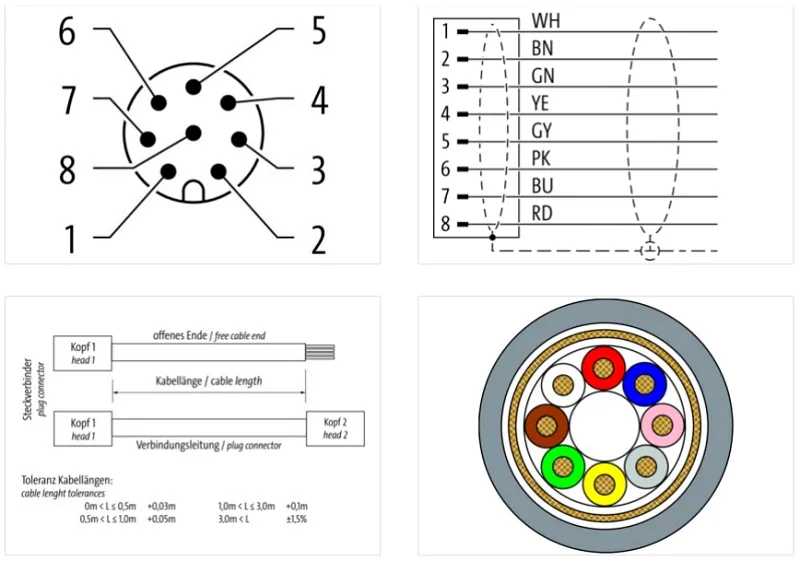

Cáp 10m bọc chống nhiễu có đầu nối M12 - detail 2

  • Shielded (bọc chống nhiễu)
  • Vật liệu: PUR
  • 8×0.25 shielded gy UL/CSA + drag chain

Cáp khác



Cable length 10,00 m

Side 1

Family construction form M12
No. of poles 8
Coding A
Gender male
Mounting method inserted, screwed
Threaded hole M12 x 1
Tightening torque 0,6 Nm
Width across flats SW13
Cable outlet straight
Material PUR
Material contact Copper alloy
Coating contact gold plated
Degree of protection (EN IEC 60529) IP67, IP66K, IP65

Side 2

Family construction form free cable end
Stripping length (jacket) 60 mm

Electrical data | Supply

Operating voltage AC max. 30 V
Operating voltage DC max. 30 V
Current operating per contact max. 2 A
Operating voltage AC (UL-listed) 30 V
Operating voltage DC (UL-listed) 30 V

Diagnostics

Status indication LED No

Installation | Connection

Mounting set M12 x 1

Device protection | Electrical

Degree of protection (EN IEC 60529) IP67, IP66K, IP65
Additional condition protection degree inserted, screwed
Pollution Degree 3
Rated surge voltage 0,8 kV
Material group (IEC 60664-1) I

Mechanical data

Contour for corrugated hose without

Mechanical data | Material data

Color contact carrier green
Screw connection Zinc die-casting
Coating of fitting nickel plated
Locking material Zinc die-casting
Coating locking Nickeled

Mechanical data | Mounting data

Mounting method inserted, screwed, Shaking protection

Environmental characteristics | Climatic

Operating temperature min. -30 °C
Operating temperature max. 85 °C
Additional condition temperature range depending on cable quality

Important installation notes

Note on bending radius Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

Conformity

Product standard EN IEC 61076-2-101 (M12)
