Cáp 0.3m có đầu nối M12 male 0° A-code / MSUD valve form A

– Kết nối van form A 18mm với M12 male thẳng (0°)
– Cáp PUR 3 lõi 0.75mm², dài 0.3m
– Có LED
– Chuẩn UL/CSA, dùng cho drag chain (xích kéo)

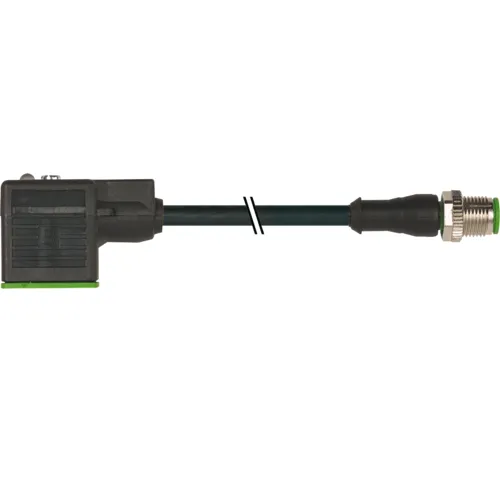

Cáp 0.3m có đầu nối M12 male 0° A-code / MSUD valve form A 7000-40881-6360030 của Murrelektronik là giải pháp kết nối van điện từ form A 18mm với đầu M12 male 0° A-code, cáp PUR 3×0.75 màu đen dài 0.3m đạt chuẩn UL/CSA, phù hợp với xích kéo. Có LED, điện áp 24V AC/DC

Cáp 0.3m có đầu nối M12 male 0° A-code - MSUD valve form A - detail1

Đặc điểm sản phẩm:

  • Đầu nối: M12 male 0° A-code / MSUD valve plug form A 18mm
  • Cáp PUR 3×0.75 mm² màu đen, dài 0.3m
  • Chuẩn: UL/CSA + drag chain
  • Điện áp: 24 V AC ±20% / DC ±25%
  • Có LED, mạch suppression
  • PE bridged

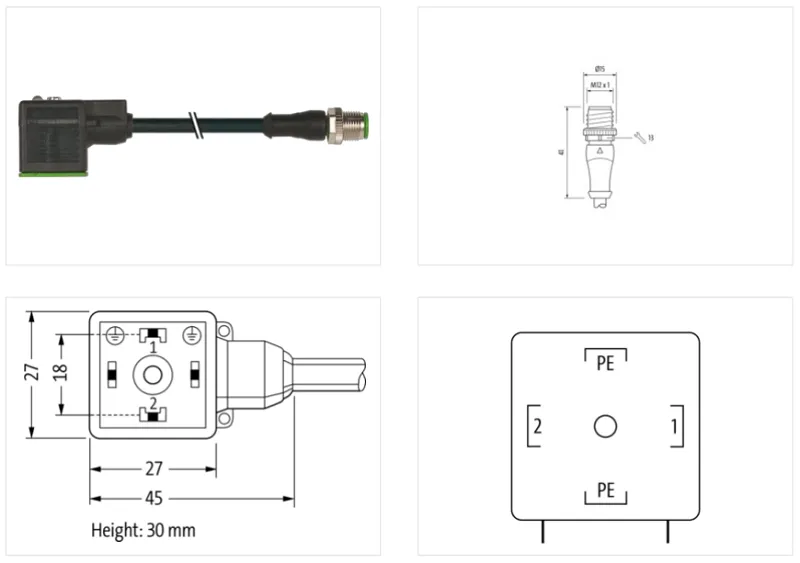

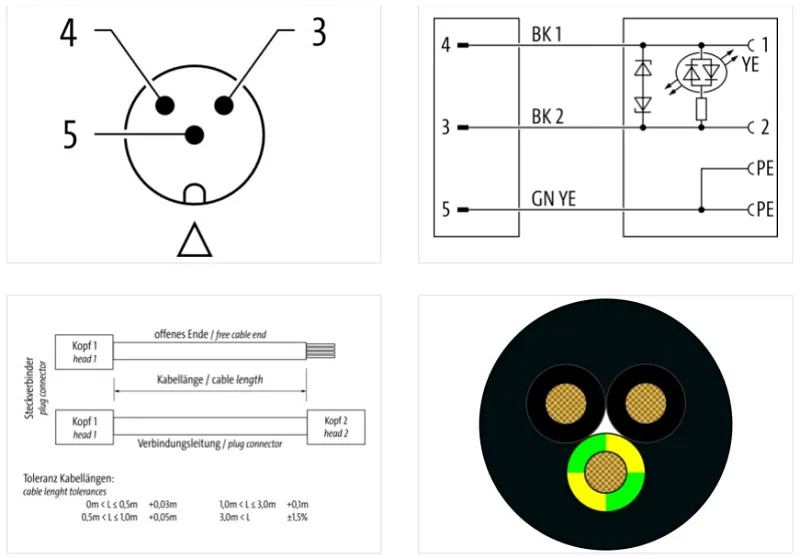

Cáp 0.3m có đầu nối M12 male 0° A-code - MSUD valve form A - detail2

  • Vỏ nhựa chống hóa chất và dầu tốt

Cáp khác

Cable length 0,30 m

Side 1-1

Family construction form M12
No. of poles 3
Coding A
Mounting method inserted, screwed
Threaded hole M12 x 1
Tightening torque 0,6 Nm
Width across flats SW13
suitable for corrugated tube (internal Ø) 10 mm
Material PUR
Degree of protection (EN IEC 60529) IP67

Side 2-2

Family construction form Valve connector form A
No. of poles 4
Threaded hole M3x31
Tightening torque 0,4 Nm
Material PBT
Degree of protection (EN IEC 60529) IP67

Electrical data

Drop-out delay time max. 20 ms

Electrical data | Supply

Operating voltage AC 24 V
Operating voltage AC min. 19,2 V
Operating voltage AC max. 28,8 V
Operating voltage DC 24 V
Operating voltage DC min. 18 V
Operating voltage DC max. 30 V
Current operating per contact max. 4 A
Cut-off peak voltage max. 55 V
Current consumption max. 15 mA

Diagnostics

Status indication LED yellow

Device protection | Electrical

Degree of protection (EN IEC 60529) IP67
Additional condition protection degree inserted, screwed
Pollution Degree 3
Additional suppressor Z-diode
Rated surge voltage 0,8 kV
Material group (IEC 60664-1) I

Mechanical data | Material data

housing Plastic
Color housing black
Locking material Zinc die-casting
Coating locking Nickeled
Gasket PUR

Mechanical data | Mounting data

Mounting method inserted, screwed

Environmental characteristics | Climatic

Operating temperature min. -25 °C
Operating temperature max. 85 °C
Additional condition temperature range depending on cable quality

Important installation notes

Note on bending radius Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

Conformity

Product standard EN IEC 61076-2-101 (M12), EN 175301-803 (valve plug)
