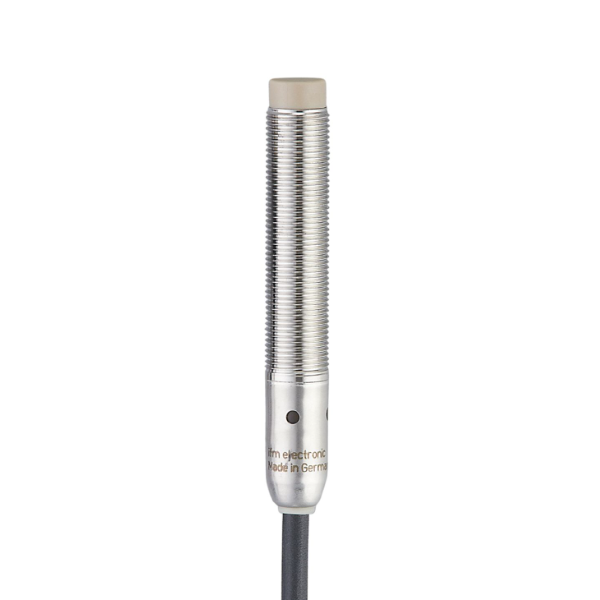

Cảm biến tiệm cận IFM IFT213

Cảm biến tiệm cận IFM IFT213

– Phạm vi hoạt động 7 mm. Non-flush
– Điện áp hoạt động 10…30 VDC
– Ngõ ra2 dây; 3 dây. PNP/NPN, NO
– Cáp PVC dài 6 m

Cảm biến tiệm cận IFM IFT213

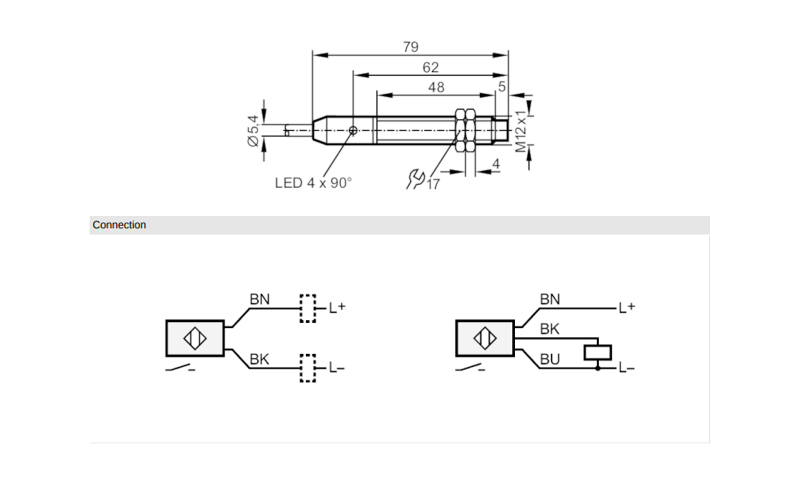

Cảm biến tiệm cận IFM IFT213 - detail

– Điện áp làm việc: 10…30 VDC
– Ngõ ra PNP/NPN, NO. 2 dây; 3 dây
– Vật liệu: thép không gỉ (316L/1.4404); mặt cảm biến: PEEK
– 1 x LED màu vàng hiển thị trạng thái; 1 x LED màu đỏ hỗ trợ cài đặt
– Nhiệt độ môi trường: 0…100 °C

Thông số kỹ thuật – Cảm biến tiệm cận IFM IFT213

Product characteristics

Electrical design	PNP/NPN
Output function	normally open
Sensing range[mm]	7
Housing	threaded type
Dimensions[mm]	M12 x 1 / L = 79

Application

Special feature	Increased sensing range; Optical setting aid
Application	regular cleaning processes

Electrical data

Operating voltage[V]	10…30 DC
Current consumption[mA]	12; (24 V)
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP/NPN
Output function	normally open
Max. voltage drop switching output DC[V]	2.8
Minimum load current[mA]	2; (only in 2-wire operation)
Max. leakage current[mA]	0.5; (only in 2-wire operation)
Permanent current rating of switching output DC[mA]	100
Switching frequency DC[Hz]	700
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range[mm]	7
Real sensing range Sr[mm]	7 ± 10 %
Operating distance[mm]	0…5.7
Increased sensing range	yes

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis[% of Sr]	3…15
Switch point drift[% of Sr]	-10…10

Operating conditions

Ambient temperature[°C]	0…100
Protection	IP 68; IP 69K

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V
EN 55011	class B

MTTF[years]

1287

UL approval

Ta	0…40 °C
Enclosure type	Type 1
power supply	Limited Voltage/Current
File number UL	E174191

Mechanical data

Weight[g]	251.5
Housing	threaded type
Mounting	non-flush mountable
Dimensions[mm]	M12 x 1 / L = 79
Thread designation	M12 x 1
Materials	stainless steel (316L/1.4404); sensing face: PEEK

Displays / operating elements

Display

switching status	1 x LED, yellow
setting aid	1 x LED, red

Optical setting aid

yes

Accessories

Items supplied

lock nuts: 2

Remarks

Remarks

suitable for PLC type 1 according to IEC 61131-2

Pack quantity

1 pcs.

Electrical connection

Connection

Cable: 6 m, PVC; 3 x 0.34 mm²

Datasheet Cảm biến tiệm cận IFM IFT213
