Ex-cable gland polyamide intrinsic safety, ren dài
– Cỡ ren M40, màu xanh/đen
– Chuẩn Ex eb/Ex tb, ATEX/IECEx
– Cáp Φ17–28 mm
– IP66/IP68
Cable gland nhực chống cháy nổ Ex i M40 10103392 của Wiska – vật liệu polyamide, màu RAL 5012/9005, đạt chuẩn Ex eb/Ex tb, ATEX/IECEx. Phù hợp cáp Φ17–28 mm
Đặc điểm:
– Vật liệu: Polyamide
– Ron: EPDM
– Type of protection: Ex eb, Ex tb
– Chứng chỉ: IECEx, ATEX
– Nhiệt độ: -40 °C .. 75 °C
– IP66 / IP68 (5 bar 30 min)
– Cỡ ren M40, dài
– Đường kính cáp: 17–28 mm
– Màu RAL 5012 / RAL 9005
| Material cable gland | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 75 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Type of protection | Ex eb, Ex tb |
| Ex-Certificate | IECEx, ATEX |
| Glow wire test | 750 °C |

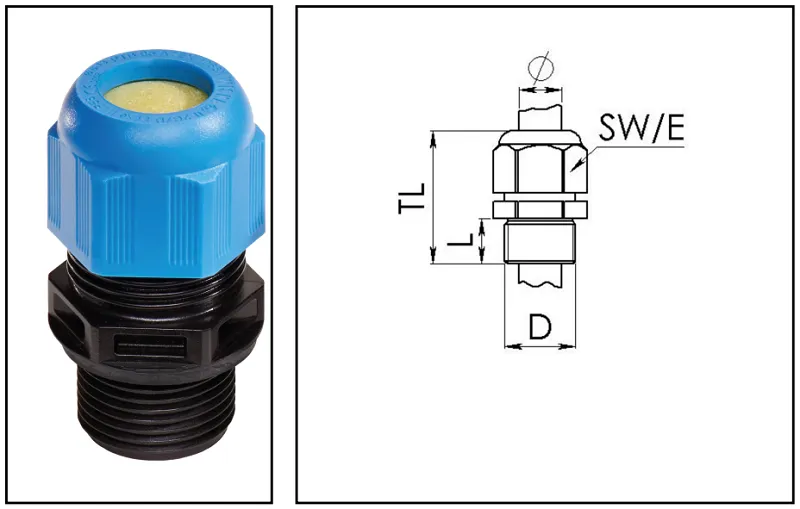

| Thread type | M |
| Ø Connection thread D | 40 |
| Lead | 1,5 |
| Length screw-in thread L | 18 mm |
| Ø cable diameter min | 17 mm |
| Ø cable diameter max | 28 mm |
| Key width SW | 46 mm |
| Collar diameter (E) | 51 mm |
| Total length TL | 58 mm – 71 mm |
| Install. torques fitting | 11 N m |
| Install. torques cap nut | 10 N m |
| Equipment | Incl. connection thread gasket |
| Product Color | RAL 5012 / RAL 9005 |
| Order no. RAL 9005 | 10103392 |
| Type | ESKE/1-L-i 40 |
| Packing unit | 10 |
| EAN number | 4007685083577 |
| Tariff number | 39269097 |
| ETIM-Classification | EC000441 |
