Ex-cable gland polyamide, intrinsic safety
– Cỡ ren M12, màu xanh/đen
– Đạt Ex tb/Ex eb, ATEX/IECEx
– Cáp Φ3–6 mm
– IP66/IP68
Cable gland nhựa chống cháy nổ Ex i M12 10103371 của Wiska: được làm bằng polyamide, màu RAL 5012/9005, đạt Ex tb/Ex eb, ATEX/IECEx. Phù hợp cáp Φ3–6 mm. IP66/IP68
Đặc điểm:
– Vật liệu: Polyamide
– Ron: EPDM
– Type of protection: Ex tb, Ex eb
– Chứng chỉ: ATEX, IECEx
– Nhiệt độ: -15 °C .. 65 °C
– IP66 / IP68 (5 bar 30 min)
– Cỡ ren M12, ngắn
– Đường kính cáp: 3–6 mm
– Màu RAL 5012 / RAL 9005
| Material cable gland | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | 15 °C |
| Temp. range max | 65 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Type of protection | Ex tb, Ex eb |
| Ex-Certificate | ATEX, IECEx |
| Glow wire test | 750 °C |
| Thread type | M |

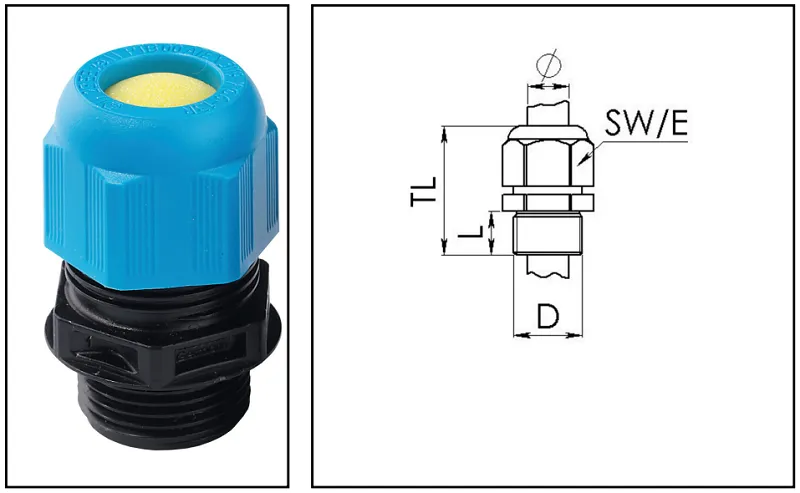

| Ø Connection thread D | 12 |
| Lead | 1,5 |
| Length screw-in thread L | 9 mm |
| Ø cable diameter min | 3 mm |
| Ø cable diameter max | 6 mm |
| Key width SW | 16 mm |
| Collar diameter (E) | 18 mm |
| Total length TL | 31 mm – 37 mm |
| Install. torques fitting | 2 N m |
| Install. torques cap nut | 2 N m |
| Equipment | Incl. connection thread gasket |
| Product Color | RAL 5012 / RAL 9005 |
| Order no. RAL 9005 | 10103371 |
| Type | ESKE/1-i 12 |
| Packing unit | 50 |
| EAN number | 4007685082976 |
| Tariff number | 39269097 |
| ETIM-Classification | EC000441 |
