Ex-cable gland stainless steel
– Ren M25, thép không gỉ 1.4305
– Đạt Ex tb/Ex eb, ATEX/IECEx
– Cáp ∅10–17 mm
– IP66/IP68
Cable gland chống cháy nổ stainless steel M25 10069203 của Wiska (ESSKE 25): bằng thép không gỉ A2 (1.4305), đạt Ex tb/Ex eb, ATEX/IECEx. Phù hợp cáp ∅10–17 mm, IP66/IP68
Đặc điểm:
– Vật liệu: Stainless steel A2 (1.4305)
– Clamping cage: Polyamide
– Ron: EPDM
– Type of protection: Ex tb, Ex eb
– Chứng chỉ: ATEX, IECEx
– Nhiệt độ: -40 °C .. 75 °C
– IP66 / IP68 (5 bar 30 min)
– Ren M25
– Đường kính cáp: 10–17 mm
| Material cable gland | Stainless steel A2 (1.4305) |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 75 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Type of protection | Ex tb, Ex eb |
| Ex-Certificate | ATEX, IECEx |
| Thread type | M |

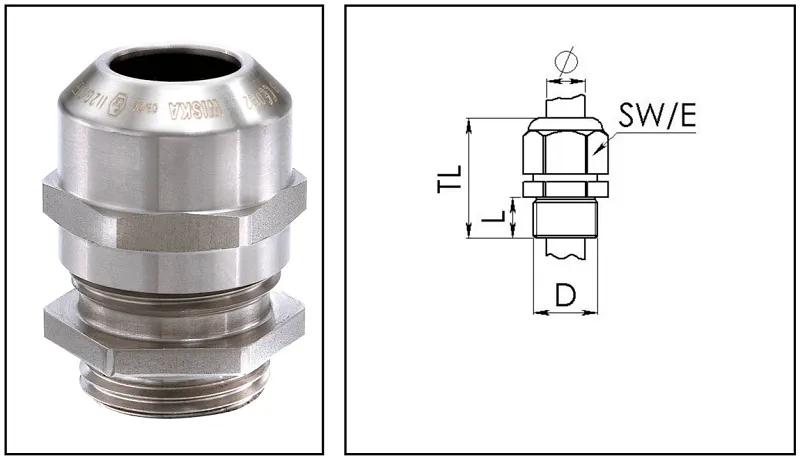

| Ø Connection thread D | 25 |
| Lead | 1,5 |
| Length screw-in thread L | 7 mm |
| Ø cable diameter min | 10 mm |
| Ø cable diameter max | 17 mm |
| Key width SW | 30 mm |
| Collar diameter (E) | 33 mm |
| Total length TL | 33 mm – 42 mm |
| Install. torques fitting | 10 N m |
| Install. torques cap nut | 10 N m |
| WISKA-Order no. | 10069203 |
| Type | ESSKE 25 |
| Packing unit | 10 |
| Tariff number | 73269098 |
| EAN number | 4007685692038 |
| ETIM-Classification | EC000441 |
