Ex-cable gland brass, ren dài
– Cỡ M32, đồng niken
– Chuẩn Ex eb/Ex tb, ATEX/IECEx
– Cáp Φ13–21 mm
– IP66/IP68

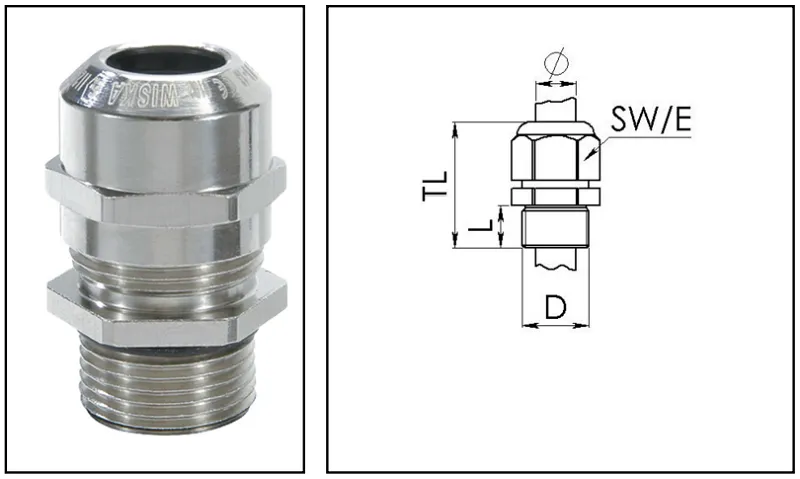

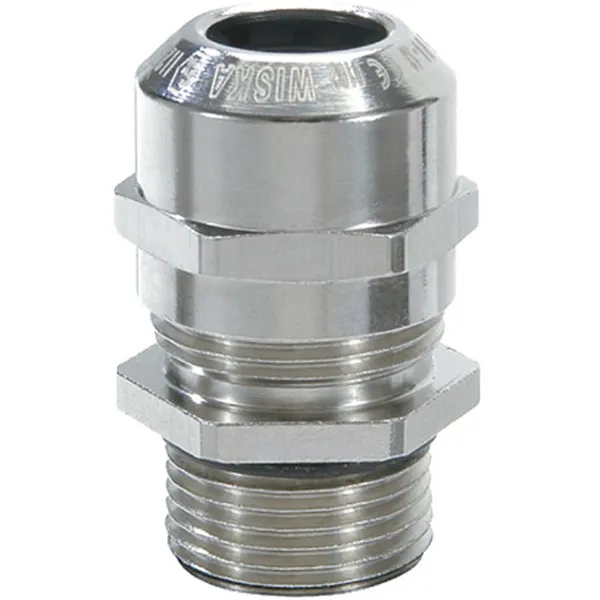

Cable gland chống cháy nổ M32 10065052 của Wiska (EMSKE-L 32): bằng đồng niken, đạt Ex eb/Ex tb, ATEX/IECEx. Phù hợp cáp Φ13–21 mm. IP66/IP68
Đặc điểm:
– Vật liệu: Brass nickel-plated
– Clamping cage: Polyamide
– Ron: EPDM
– Type of protection: Ex eb, Ex tb
– Chứng chỉ: ATEX, IECEx
– Nhiệt độ: -40 °C .. 75 °C
– IP66 / IP68 (5 bar 30 min)
– Ren M32
– Đường kính cáp: 13–21 mm
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 75 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Type of protection | Ex eb, Ex tb |
| Ex-Certificate | ATEX, IECEx |
| Thread type | M |
| Ø Connection thread D | 32 |
| Lead | 1,5 |
| Length screw-in thread L | 15 mm |
| Ø cable diameter min | 13 mm |
| Ø cable diameter max | 21 mm |
| Key width SW | 36 mm |
| Collar diameter (E) | 40 mm |
| Total length TL | 43 mm – 51 mm |
| Install. torques fitting | 20 N m |
| Install. torques cap nut | 20 N m |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10065052 |
| Type | EMSKE-L 32 |
| Packing unit | 25 |
| Tariff number | 74198090 |
| EAN number | 4007685650526 |
| ETIM-Classification | EC000441 |
