Ex-cable gland LowTemp, đồng, ren dài
– Cỡ M63, đồng niken, ron silicone
– Chuẩn Ex eb/Ex tb, ATEX/IECEx
– Cáp Φ34–48 mm
– IP66/IP68

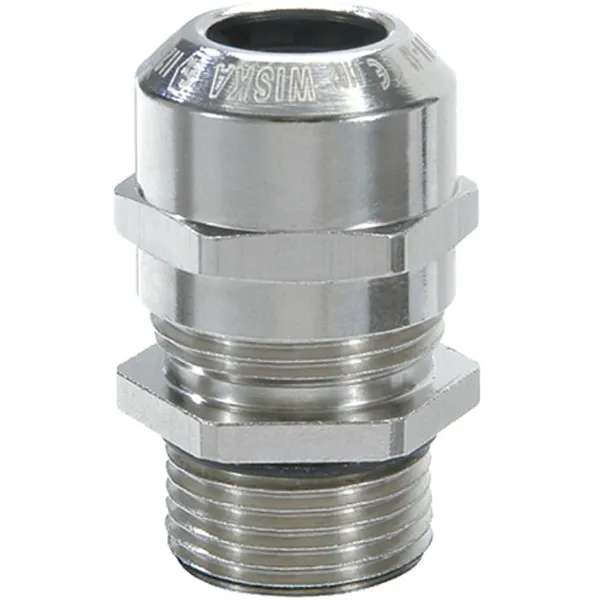

Cable gland chống cháy nổ LowTemp M63 10065945 của Wiska (EMSKE-L 63 LT): bằng đồng niken, ron silicone, nhiệt độ -60°C đến 75°C, đạt chuẩn Ex eb/Ex tb, ATEX/IECEx. Phù hợp cáp Φ34–48 mm
Đặc điểm:
– Vật liệu: Brass nickel-plated
– Clamping cage: Polyamide
– Ron: Silicone
– Type of protection: Ex eb, Ex tb
– Chứng chỉ: ATEX, IECEx
– Nhiệt độ: -60 °C .. 75 °C
– IP66 / IP68 (5 bar 30 min)
– Ren M63, dài
– Đường kính cáp: 34–48 mm
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | Silicone |
| Temp. range min | -60 °C |
| Temp. range max | 75 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Type of protection | Ex eb, Ex tb |
| Ex-Certificate | ATEX, IECEx |

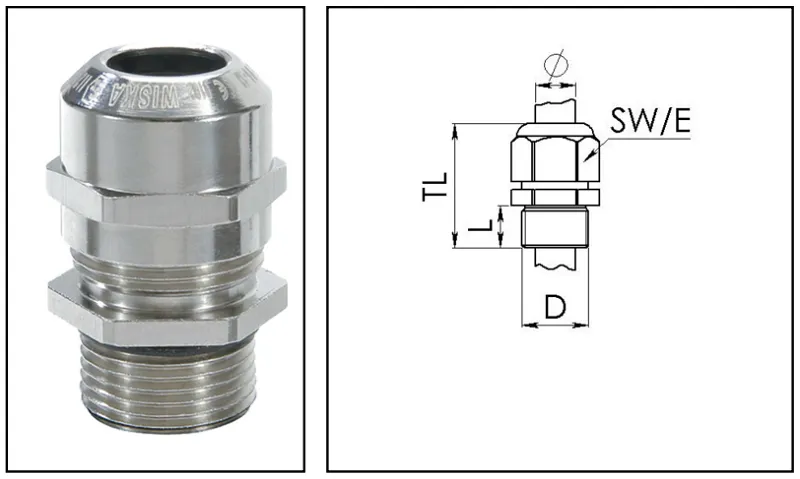

| Thread type | M |
| Ø Connection thread D | 63 |
| Lead | 1,5 |
| Length screw-in thread L | 15 mm |
| Ø cable diameter min | 34 mm |
| Ø cable diameter max | 48 mm |
| Key width SW | 68 mm |
| Collar diameter (E) | 75 mm |
| Total length TL | 61 mm – 72 mm |
| Install. torques fitting | 40 N m |
| Install. torques cap nut | 40 N m |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10065945 |
| Type | EMSKE-L 63 LT |
| Packing unit | 10 |
| Tariff number | 74198090 |
| EAN number | 4007685659451 |
| ETIM-Classification | EC000441 |
