Ex-cable gland stainless steel, ren dài
– Ren M16, bằng thép không gỉ 1.4305
– Chuẩn Ex tb/Ex eb, ATEX/IECEx
– Cáp ∅5–10 mm
– IP66/IP68
Cable gland chống cháy nổ inox M16 10069233 của Wiska (ESSKE-L 16): bằng thép không gỉ A2 (1.4305), đạt chuẩn Ex tb/Ex eb, ATEX/IECEx. Phù hợp cáp ∅5–10 mm. IP66/IP68
Đặc điểm:
– Vật liệu: Stainless steel A2 (1.4305)
– Clamping cage: Polyamide
– Ron: EPDM
– Type of protection: Ex tb, Ex eb
– Chứng chỉ: ATEX, IECEx
– Nhiệt độ: -40 °C .. 75 °C
– IP66 / IP68 (5 bar 30 min)
– Ren M16, ren dài
– Đường kính cáp: 5–10 mm
| Material cable gland | Stainless steel A4 (1.4404) |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 75 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Type of protection | Ex eb, Ex tb |
| Ex-Certificate | IECEx, ATEX |

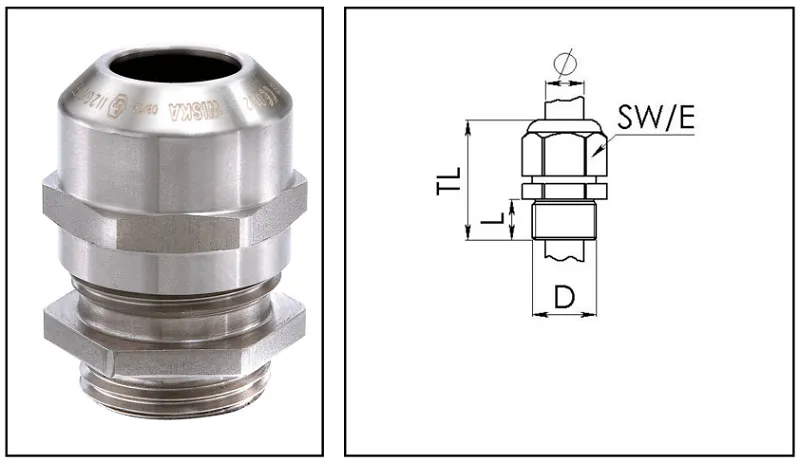

| Thread type | M |
| Ø Connection thread D | 16 |
| Lead | 1,5 |
| Length screw-in thread L | 5 mm |
| Ø cable diameter min | 5 mm |
| Ø cable diameter max | 10 mm |
| Key width SW | 22 mm |
| Collar diameter (E) | 24 mm |
| Total length TL | 26 mm – 34 mm |
| Install. torques fitting | 4 N m |
| Install. torques cap nut | 4 N m |
| WISKA-Order no. | 10069233 |
| Type | ESSKE-4 16 |
| Packing unit | 10 |
| Tariff number | 73269098 |
| EAN number | 4007685692335 |
| ETIM-Classification | EC000441 |
