Ex-EMC cable gland stainless steel 1.4404
– Ren M63, thép không gỉ
– Chuẩn Ex eb/Ex tb, ATEX/IECEx
– Cáp ∅34–48 mm
– IP66/IP68
Cable gland chống cháy nổ inox EMC M63 10069255 của Wiska (ESSKE-4 63 EMV-Z) – bằng thép không gỉ A4 (1.4404), đạt chuẩn Ex eb/Ex tb, ATEX/IECEx. Phù hợp cáp ∅34–48 mm. IP66/IP68
Đặc điểm:
– Vật liệu: Stainless steel A4 (1.4404)
– Clamping cage: Polyamide
– Ron: EPDM
– Type of protection: Ex eb, Ex tb
– Chứng chỉ: IECEx, ATEX
– Nhiệt độ: -40 °C .. 75 °C
– IP66 / IP68 (5 bar 30 min)
– Ren M63
– Đường kính cáp: 34–48 mm
| Material cable gland | Stainless steel A4 (1.4404) |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 75 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Type of protection | Ex eb, Ex tb |
| Ex-Certificate | IECEx, ATEX |

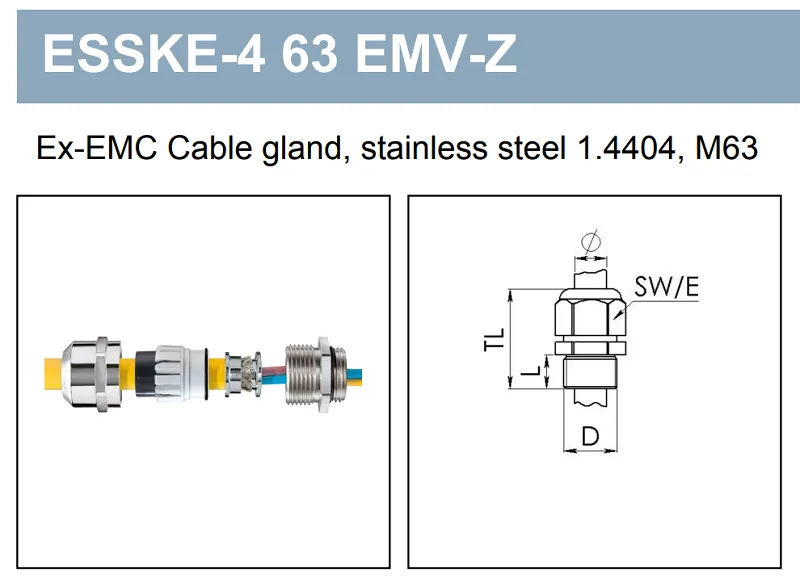

| Thread type | M |
| Ø Connection thread D | 63 |
| Lead | 1,5 |
| Length screw-in thread L | 10 mm |
| Ø cable diameter min | 34 mm |
| Ø cable diameter max | 48 mm |
| Ø cable below cable shield max | 45 mm |
| Key width SW | 68 mm |
| Collar diameter (E) | 75 mm |
| Total length TL | 56 mm – 67 mm |
| Install. torques fitting | 40 N m |
| Install. torques cap nut | 40 N m |
| WISKA-Order no. | 10069255 |
| Type | ESSKE-4 63 EMV-Z |
| Packing unit | 1 |
| Tariff number | 85369010 |
| EAN number | 4007685692557 |
| ETIM-Classification | EC000441 |
