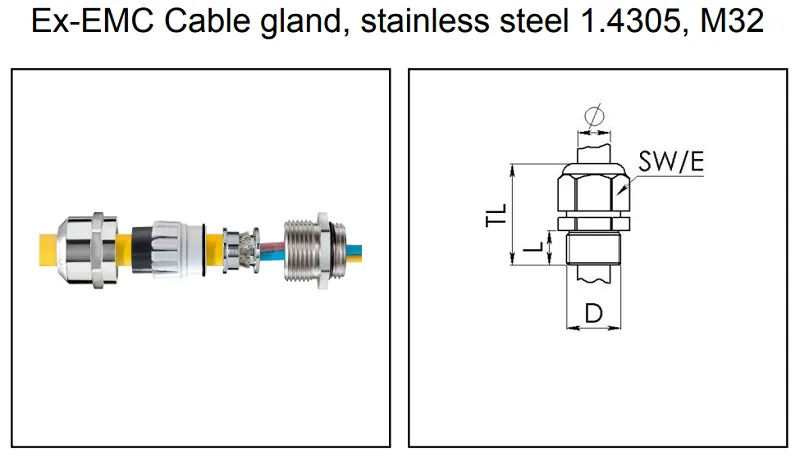

Ex-EMC cable gland stainless steel
– Ren M32, thép không gỉ 1.4305
– Chuẩn Ex eb/Ex tb, ATEX/IECEx
– Cáp ∅13–21 mm
– IP66/IP68
Cable gland chống cháy nổ inox EMC M32 10069220 của Wiska (ESSKE 32 EMV-Z): bằng thép không gỉ A2 (1.4305), đạt chuẩn Ex eb/Ex tb, ATEX/IECEx. Phù hợp cáp ∅13–21 mm. IP66/IP68
Đặc điểm:
– Vật liệu: Stainless steel A2 (1.4305)
– Clamping cage: Polyamide
– Ron: EPDM
– Type of protection: Ex eb, Ex tb
– Chứng chỉ: ATEX, IECEx
– Nhiệt độ: -40 °C .. 75 °C
– IP66 / IP68 (5 bar 30 min)
– Ren M32
– Đường kính cáp: 13–21 mm
| Material cable gland | Stainless steel A2 (1.4305) |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 75 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Type of protection | Ex eb, Ex tb |
| Ex-Certificate | ATEX, IECEx |
| Thread type | M |
| Ø Connection thread D | 32 |
| Lead | 1,5 |
| Length screw-in thread L | 8 mm |
| Ø cable diameter min | 13 mm |
| Ø cable diameter max | 21 mm |
| Ø cable below cable shield max | 20 mm |
| Key width SW | 36 mm |
| Collar diameter (E) | 40 mm |
| Total length TL | 36 mm – 44 mm |
| Install. torques fitting | 20 N m |
| Install. torques cap nut | 20 N m |
| WISKA-Order no. | 10069220 |
| Type | ESSKE 32 EMV-Z |
| Packing unit | 5 |
| Tariff number | 85369010 |
| EAN number | 4007685692205 |
| ETIM-Classification | EC000441 |
