Ex d cable gland brass NPT
– NPT 1/2″, đồng niken, ron silicone
– Đạt Ex db/Ex eb/Ex tb, ATEX/IECEx
– Cáp ∅9–15.3 mm
– IP66/IP67

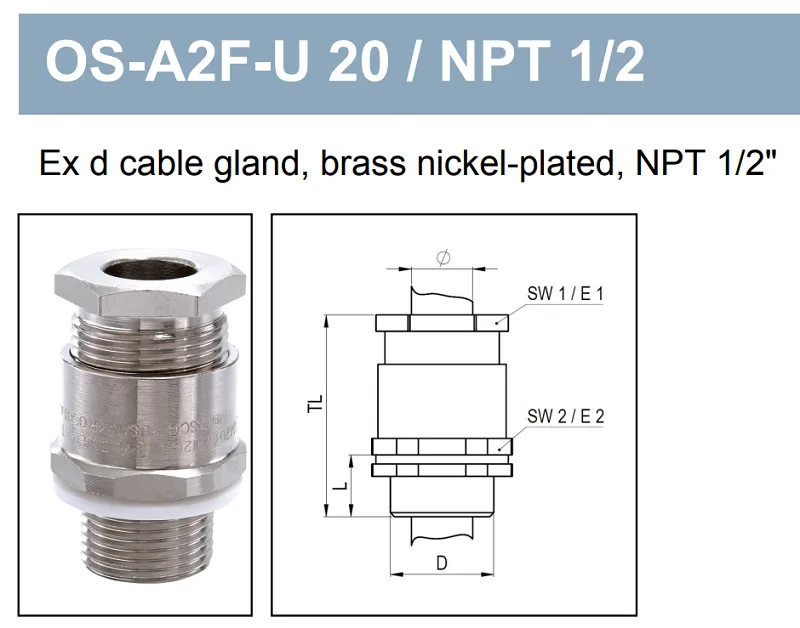

Cable gland chống cháy nổ Ex d NPT 1/2″ 50110129 của Wiska (OS-A2F-U 20 / NPT 1/2): bằng đồng niken, ron silicone, đạt Ex db/Ex eb/Ex tb, ATEX/IECEx. Phù hợp cáp ∅9–15.3 mm. IP66/IP67
Đặc điểm:
– Vật liệu: Brass nickel-plated
– Ron: Silicone
– Type of protection: Ex db, Ex eb, Ex tb
– Chứng chỉ: ATEX, IECEx
– Nhiệt độ: -60 °C .. 110 °C
– IP66 / IP67
– Ren NPT 1/2″
– Đường kính cáp: 9–15.3 mm
– Kèm locknut + gioăng ren
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | Silicone |
| Temp. range min | -60 °C |
| Temp. range max | 110 °C |
| Protection class | IP66 / IP67 |
| Type of protection | Ex db, Ex eb, Ex tb |
| Ex-Certificate | ATEX, IECEx |
| Thread type | NPT |
| Ø Connection thread D | 1/2″ |
| Length screw-in thread L | 15 mm |
| Ø cable diameter min | 9 mm |
| Ø cable diameter max | 15,3 mm |
| Key width SW1 | 24 mm |
| Key width SW2 | 27 mm |
| Collar diameter E1 | 28 mm |
| Collar diameter E2 | 29 mm |
| Total length TL | 49 mm |
| Install. torques fitting | 20 N m |
| Install. torques cap nut | 9,4 N m |
| Equipment | Incl. connection thread gasket, incl. locknut |
| Surface | Nickel-plated |
| Order no. nickel-plated | 50110129 |
| Type | OS-A2F-U 20 / NPT 1/2 |
| Packing unit | 1 |
| Tariff number | 74198090 |
| EAN number | 4007686314212 |
| ETIM-Classification | EC000441 |
