Ex-EMC cable gland, brass, NPT
– Cỡ ren NPT 1/2″, có earthing cone (nón tiếp địa)
– Chuẩn Ex eb/Ex tb, ATEX/IECEx
– Cáp Φ6–13 mm
– IP66/IP68

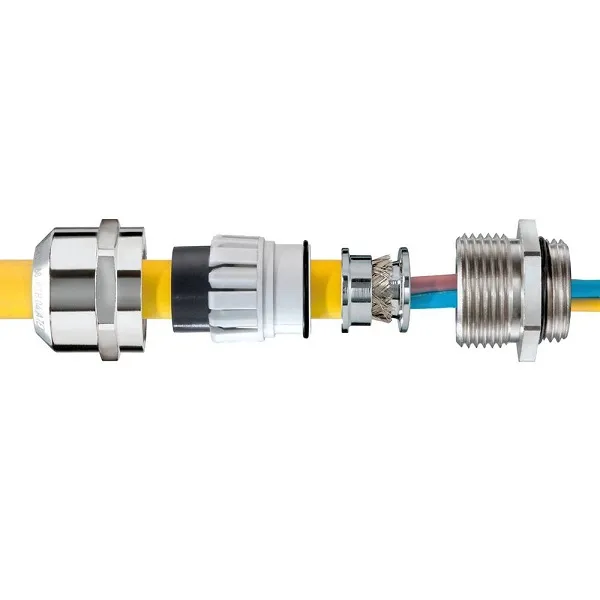

Cable gland chống cháy nổ EMC NPT 1/2″ 10063057 của Wiska (NMSKE 1/2 EMV-Z): bằng đồng niken, có earthing cone (nón tiếp địa), đạt chuẩn Ex eb/Ex tb, ATEX/IECEx. Phù hợp cáp Φ6–13 mm. IP66/IP68
Đặc điểm:
– Vật liệu: Brass nickel-plated
– Clamping cage: Polyamide
– Ron: EPDM
– Earthing insert: Brass chromium-plated
– Type of protection: Ex eb, Ex tb
– Chứng chỉ: ATEX, IECEx
– Nhiệt độ: -40 °C .. 75 °C
– IP66 / IP68 (5 bar 30 min)
– Ren NPT 1/2″
– Đường kính cáp: 6–13 mm
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Material earthing insert | Brass chromium-plated |
| Temp. range min | -40 °C |
| Temp. range max | 75 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Type of protection | Ex eb, Ex tb |
| Ex-Certificate | ATEX, IECEx |
| Thread type | NPT |
| Ø Connection thread D | 1/2″ |
| Length screw-in thread L | 16 mm |
| Ø cable diameter min | 6 mm |
| Ø cable diameter max | 13 mm |
| Ø cable below cable shield max | 9,5 mm |
| Key width SW | 24 mm |
| Collar diameter (E) | 27 mm |
| Total length TL | 38 mm – 45 mm |
| Install. torques fitting | 8 N m |
| Install. torques cap nut | 8 N m |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10063057 |
| Type | NMSKE 1/2 EMV-Z |
| Packing unit | 50 |
| Tariff number | 85369010 |
| EAN number | 4007685630573 |
| ETIM-Classification | EC000441 |
