Ex-EMC cable gland, brass
– Ren M25, earthing cone DIN 89345
– Chuẩn Ex eb/Ex tb, ATEX/IECEx
– Cáp Φ10–17 mm
– IP66/IP68
Cable gland chống cháy nổ EMC M25 10065059 của Wiska (EMSKE 25 EMV-Z): bằng đồng niken, có earthing cone (nón tiếp địa) DIN 89345, đạt chuẩn Ex eb/Ex tb, ATEX/IECEx. Phù hợp cáp Φ10–17 mm
Đặc điểm:
– Vật liệu: Brass nickel-plated
– Clamping cage: Polyamide
– Ron: EPDM
– Earthing insert: Brass plated
– Type of protection: Ex eb, Ex tb
– Chứng chỉ: ATEX, IECEx
– Nhiệt độ: -40 °C .. 75 °C
– IP66 / IP68 (5 bar 30 min)
– Ren M25
– Đường kính cáp: 10–17 mm
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Material earthing insert | Brass plated |
| Temp. range min | -40 °C |
| Temp. range max | 75 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Type of protection | Ex eb, Ex tb |
| Ex-Certificate | ATEX, IECEx |
| Thread type | M |

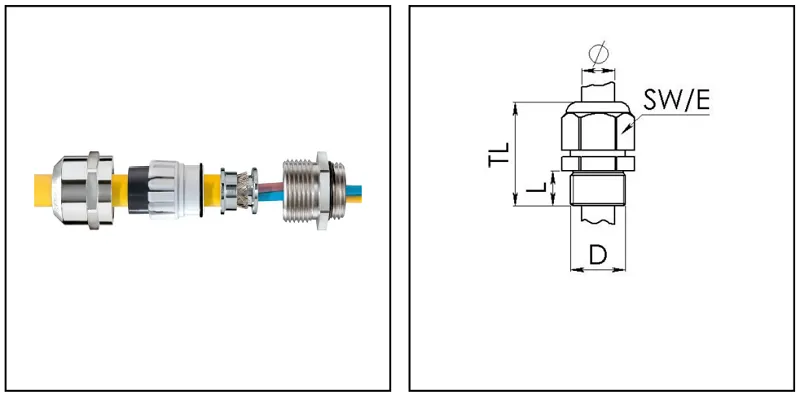

| Ø Connection thread D | 25 |
| Lead | 1,5 |
| Length screw-in thread L | 7 mm |
| Ø cable diameter min | 10 mm |
| Ø cable diameter max | 17 mm |
| Ø cable below cable shield max | 16 mm |
| Key width SW | 29 mm |
| Collar diameter (E) | 32 mm |
| Total length TL | 33 mm – 42 mm |
| Install. torques fitting | 10 N m |
| Install. torques cap nut | 10 N m |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10065059 |
| Type | EMSKE 25 EMV-Z |
| Packing unit | 50 |
| Tariff number | 85369010 |
| EAN number | 4007685650595 |
| ETIM-Classification | EC000441 |
