Ex-EMC cable gland LowTemp stainless steel
– Ren M20, ron silicone
– Đạt Ex tb/Ex eb, ATEX/IECEx
– Cáp ∅6–13 mm
– IP66/IP68

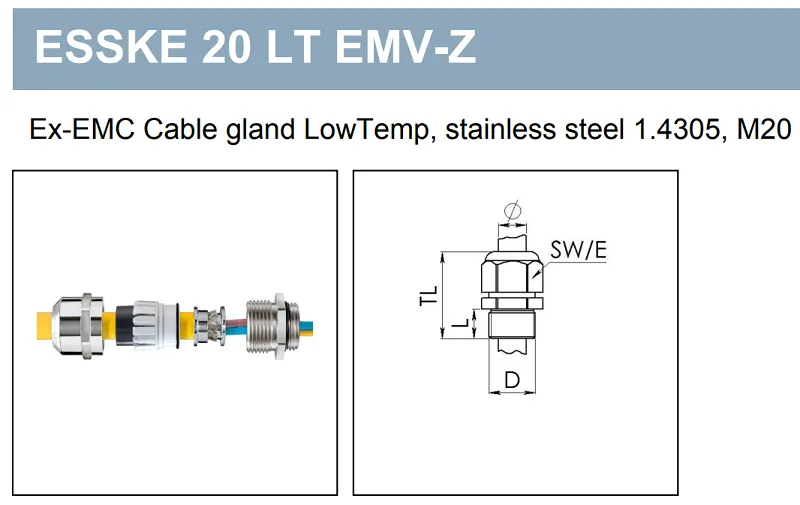

Cable gland chống cháy nổ EMC LowTemp M20 10065980 của Wiska (ESSKE 20 LT EMV-Z) bằng thép không gỉ A2 (1.4305), ron silicone, nhiệt độ -60°C đến 75°C, đạt Ex tb/Ex eb, ATEX/IECEx. Phù hợp cáp ∅6–13 mm
Đặc điểm:
– Vật liệu: Stainless steel A2 (1.4305)
– Clamping cage: Polyamide
– Gioăng: Silicone
– Type of protection: Ex tb, Ex eb
– Chứng chỉ: IECEx, ATEX
– Nhiệt độ: -60 °C .. 75 °C
– IP66 / IP68 (5 bar 30 min)
– Ren M20
– Đường kính cáp: 6–13 mm
| Material cable gland | Stainless steel A2 (1.4305) |
| Material clamping cage | Polyamide |
| Material sealing gasket | Silicone |
| Temp. range min | -60 °C |
| Temp. range max | 75 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Type of protection | Ex tb, Ex eb |
| Ex-Certificate | IECEx, ATEX |
| Thread type | M |
| Ø Connection thread D | 20 |
| Lead | 1,5 |
| Length screw-in thread L | 6 mm |
| Ø cable diameter min | 6 mm |
| Ø cable diameter max | 13 mm |
| Ø cable below cable shield max | 9,5 mm |
| Key width SW | 24 mm |
| Collar diameter (E) | 27 mm |
| Total length TL | 29 mm – 37 mm |
| Install. torques fitting | 8 N m |
| Install. torques cap nut | 8 N m |
| WISKA-Order no. | 10065980 |
| Type | ESSKE 20 LT EMV-Z |
| Packing unit | 10 |
| Tariff number | 85369010 |
| EAN number | 4007685659802 |
| ETIM-Classification | EC000441 |
