| Product | Product name | NANL-B500G-RE |
| Part number | 7313.100 | |

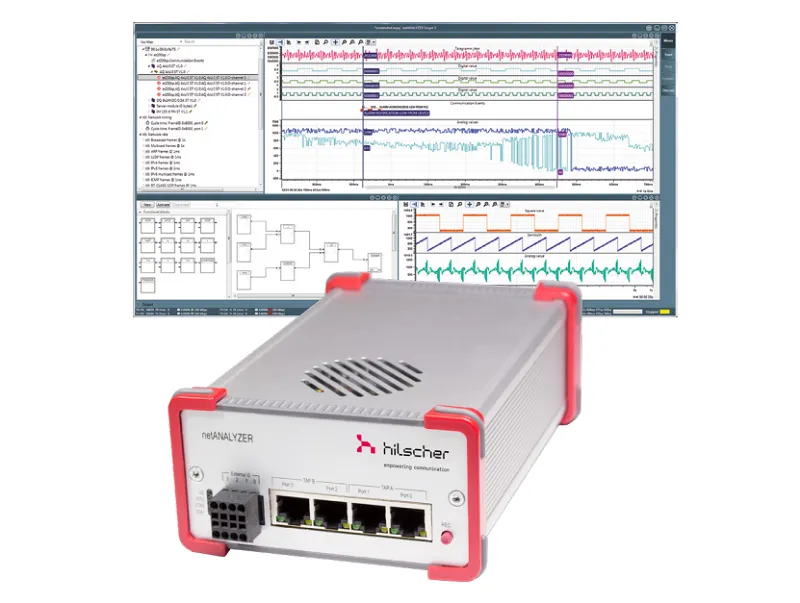

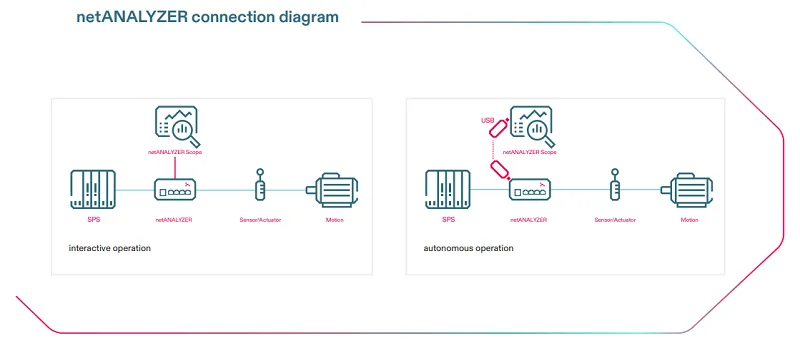

| Description | netANALYZER portable Device with Gigabit Ethernet PC interface for Real-Time Ethernet and all 10/100BASE-TX Ethernet Networks (Stand-alone Device) | |
| Function | Passive Ethernet analyzer for RT-Ethernet systems; analyzes the data in a communication link and captures the incoming Ethernet frames. Additionally, events of four digital inputs can be captured. | |
| Power supply and current | Supply voltage | 24 V DC ±6 V DC |
| Maximum current (typically) | 700 mA (at 24 V) | |
| Typical power consumption | 16.8 W | |
| Power connector | COMBICON, 3-pin, maximum permitted cable length: 3 m. Alternatively connector for barrel plug, maximum permitted cable length: 3 m. Only alternative use permitted! | |
| System interface | Bus type / PC interface | Gigabit Ethernet RJ45 socket, required connection to the PC‚ UPLINK 1 Gb/s: Ethernet RJ45 socket (1 Port) |
| Capturing interface | USB 2.0 (hard drive or memory stick), max. 500 mA or external power supply | |
| Autonomous operating mode | Data rate approx. 50% network load in case of capturing from a TAP | |
| Measurement interface | Connector | 4 x RJ45 socket, channels/ports: 2/4 communication channels with integrated TAP (TAP A, TAP B), and each with two ports for capturing data in both directions (together 4 Ports: Port 0 to Port 3) |
| Digital signals | 4x GPIO input/output 3.3 V and 24 V to capture digital signals or to trigger outputs | |
| Timestamp | ± 5 ns measurement accuracy, 1 ns resolution | |
| Operating elements | Switch/Button | Power Switch, REC Button to enable data recording in autonomous mode |
| Permitted ambient conditions | Ambient temperature range for operation | 0 °C … +55 °C (Air flow during measurement: 0,5m/s) |
| Ambient temperature range for storage | -10 °C … +70 °C | |
| Humidity range | 10 % … 95% relative humidity, no condensation permitted | |
| Pollution degree | The device must be used in a pollution degree 2 environment. | |
| Altitude | 0 m … 2000 m | |
| Device | Dimensions (L x W x H) | 115 x 62 x 173 mm |
| Weight | approx. 820 g | |
| Conformity | RoHS | Yes |
| Conformance with EMC directives | CE sign | Yes |
| UKCA sign | Yes | |
| Emission | EN IEC 61000-6-4:2019 / BS EN IEC 61000-6-4:2019 | |
| Immunity | EN IEC 61000-6-2:2019 / BS EN IEC 61000-6-2:2019 | |
| Electrostatic discharge (ESD) according to EN IEC 61000-4-2 / BS EN IEC 61000-4-2 (Air discharge method) | ± 8 kV, Criterion B | |
| Electrostatic discharge (ESD) according to EN IEC 61000-4-2 / BS EN IEC 61000-4-2 (Contact discharge method) | ± 6 kV, Criterion B | |
| Radiated RF, according to EN IEC 61000-4-3 / BS EN IEC 61000-4-3: 80-1000 MHz, 10 V/m, 80 % AM / 1 kHz | Criterion A | |
| Radiated RF, according to EN IEC 61000-4-3 / BS EN IEC 61000-4-3: 1.0-2.7 GHz, 10 V/m, 80 % AM / 1 kHz | Criterion A | |
| Fast transient interferences (Burst) according to EN IEC 61000-4-4 / BS EN IEC 61000-4-4 (Communication and data lines) | ± 2.2 kV, Criterion B | |
| Surge voltage, according to EN IEC 61000-4-5 / BS EN IEC 61000-4-5 (Communication and data lines) | 1 kV, Criterion A | |
| Conducted RF, according to EN 61000-4-6 / BS EN IEC 61000-4-6: 0,15-80 MHz, 10 V, 80 % AM / 1 kHz | Criterion A |
