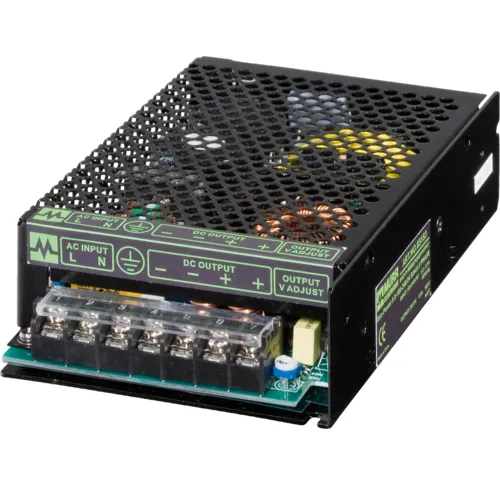

Bộ nguồn tổ ong DC 24V 10A - header

Bộ nguồn tổ ong DC 24V 10A ECO-POWER 85155

ECO-POWER 85155
– Input 90-264 VAC
– Output 24V / 10A
– Thiết kế compact

Bộ nguồn tổ ong DC 24V 10A ECO-POWER 85155 của Murrelektronik: là bộ nguồn 1 pha, ngõ ra DC 24V/ 10A

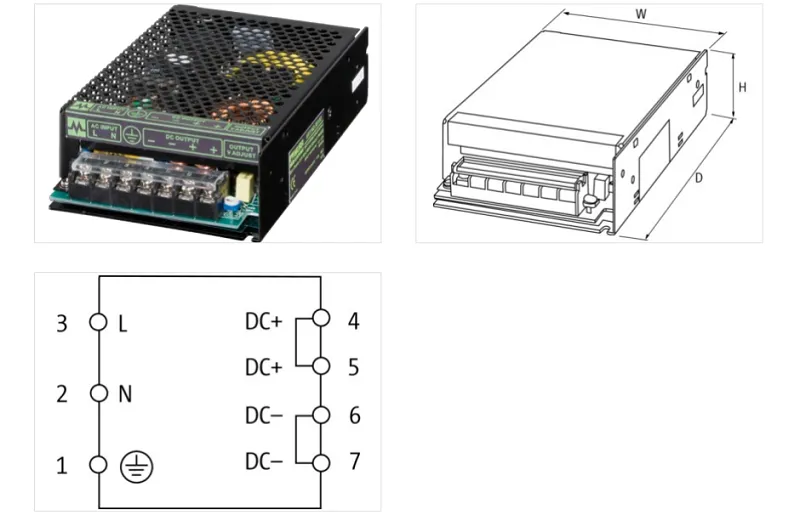

Bộ nguồn tổ ong DC 24V 10A - detail

  • Input 90-264 VAC
  • Output 24V / 10A
  • Thiết kế compact

Bộ nguồn 24VDC khác

Electrical data

Parallel connection No
Series connection Yes
Number of devices series connection max. 2

Electrical data | Supply

Power frequency 50 … 60 Hz

Electrical data | Input

Nominal input voltage AC 115 V … 230 V
Input voltage 1 AC min. 100 V
Input voltage 1 AC max. 120 V
Input voltage 2 AC min. 200 V
Input voltage 2 AC max. 240 V
Nominal current AC 4.6 A @ 115 V,2.8 A @ 230 V
Inrush current max. 20 A
Efficiency 84 % @ 115 V AC 85 % @ 230 V AC
External back-up fuse per phase max. 16 A

Electrical data | Output

Output voltage adjustable No
Output voltage DC 24 V
Output voltage DC min. 23,76 V
Output voltage DC max. 24,24 V
Output current 10 A
Spikes (s-s) max. 200 mV
Ripple effective max. 30 mV

Installation | Connection

Mounting set M4

Device protection | Electrical

Overload protection output Yes
Short-circuit protection output Yes

Mechanical data | Mounting data

Height 50 mm
Width 115 mm
Depth 230 mm
Mounting method screwed

Environmental characteristics | Electromagnetic compatibility

Interference emission EN 55011

Environmental characteristics | Climatic

Operating temperature min. 0 °C
Operating temperature max. 40 °C
Derating 40 °C
Ambient temperature (storage, transport) -20 °C … 85 °C
Relative humidity (operation) 20 % … 90 %
Additional condition relative humidity no condensation
