– Input: 3×342 – 575VAC
– Output: 45 – 56V DC / 20A
– Nguồn vào 3 pha
– Chức năng Power Boost
Bộ nguồn 3 pha Emparro DC 48V 20A 9000-17333-1421110 của Murrelektronik: input 3×342-575VAC output 45-56V/20A DC. Compact
Electrical data
| Parallel connection | Yes |
| Number of devices parallel connection max. | 3 |
| Series connection | Yes |
| Number of devices series connection max. | 20 |
Electrical data | Supply
| Protective measure | SELV/PELV |
Electrical data | Input
| Phase number input | 3 |
| Input voltage AC min. | 342 V |
| Input voltage AC max. | 575 V |
| Nominal input voltage AC | 3 × 380 V … 500 V |
| Input voltage DC min. | 450,5 V |
| Input voltage DC max. | 810 V |
| Nominal input voltage DC | 530 V … 675 V |
| Nominal current AC | 3 × 1.6 A @ 380 V,1.3 A @ 500 V |
| Nominal current DC | 530 V @ 675 V |
| Power factor | 400 V AC @ 500 V AC |
| Efficiency | 95.9 % @ 400 V AC 95.8 % @ 500 V AC |
Electrical data | Output
| Output voltage DC | 48 V |
| Output voltage DC min. | 45 V |
| Output voltage DC max. | 56 V |
| Output current | 21,3 A |
| Output current min. | 17,1 A |
| Output current max. | 21,3 A |
| Output rating | 960 W |
| Mains failure bridging time | 20 ms |
| Power Boost | 150 % |
| Duration Power Boost max. | 5 s |
| Spikes (s-s) max. | 100 mV |
| Ripple (s-s) max. | 40 mV |
Diagnostics
| Alarm contact | Yes |
Installation | Connection
| Connection | Push-In spring clamp terminals |
Device protection | Electrical
| Installation height max. ASL | 3.000 m |
| Degree of protection (EN IEC 60529) | IP20 |
| Protection class (EN IEC 61140) | I |
| Pollution Degree | 2 |
| Overload protection output | Yes |
| Short-circuit protection output | Yes |
| Overtemperature protection output | Yes |
Device protection | Mechanical
| Cooling type | Natural convection |
Mechanical data | Material data
| housing | Aluminum |
| Combustibility class housing (UL94) | V-0 |
| Conformal coated PCB | No |

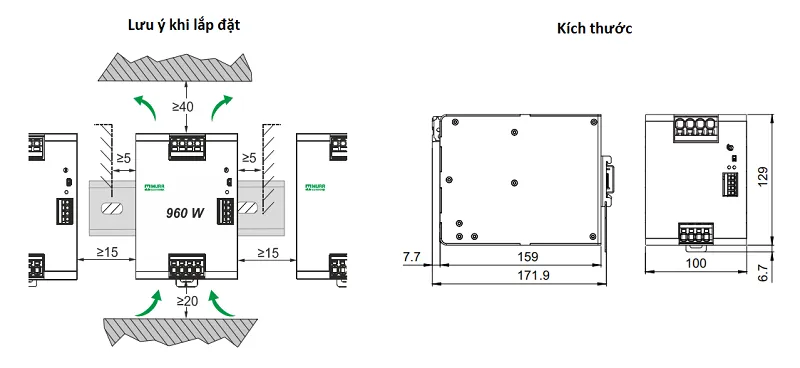

Mechanical data | Mounting data
| Net weight | 1.750 g |
| Height | 129 mm |
| Width | 100 mm |
| Depth | 171,9 mm |
| mounting position | horizontal, vertical |
| Mounting method | geschnappt |
| Suitable for mounting type | Tragschiene TH35-7.5/TH35-15 |
Environmental characteristics | Electromagnetic compatibility
| Interference emission | EN IEC 61000-6-3 |
| Immunity to interference | EN IEC 61000-6-2 |
Environmental characteristics | Climatic
| Ambient temperature (operation) | -25 °C … 70 °C |
| Ambient temperature (storage, transport) | -40 °C … 85 °C |
| Relative humidity (operation) | 95 % |
| Additional condition relative humidity | no condensation |
Environmental product conformity
| REACH ((EC) 1907/2006) | compliant |
| RoHS (2011/65/EU, (EU) 2015/863) | compliant |
| RoHS-Exemption (2011/65/EU) | keine RoHS-Ausnahme |
| China RoHS (SJ/T 11364, GB/T 26572) | EFUP-25 |
| WEEE (2012/19/EU) | compliant |
| Halogen-free-Material | halogen-free, JEDEC/ECA JS709 |
| Pb-free-Material | JEDEC JESD97 |
Conformity
| CE | 2014/30/EU |
Approvals
| UL Listed (US, CA) | E200364 |
| SEMI F47 | compliant |
