– Input/Output 0-26.4VDC
– Dung lượng 3A, buffer trong 12s (3A)

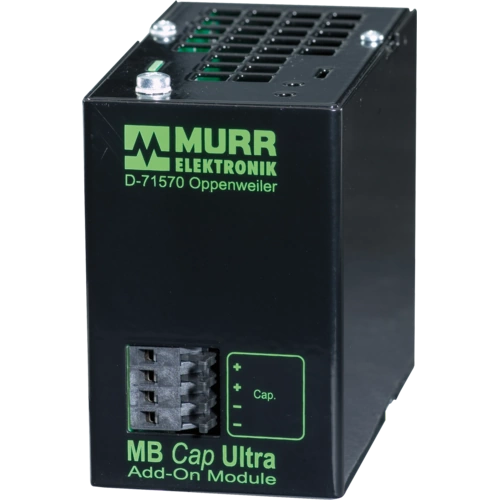

Bộ lưu điện DC 24V 3A 12s MB CAP ULTRA 85462 của Murrelektronik: lưu điện DC 24V 3A cho tối đa 12s; 1A/36s
Electrical data | Supply
| Protective measure | SELV/PELV |
Electrical data | Input
| Input voltage DC min. | 0 V |
| Input voltage DC max. | 26,4 V |
| Current input AC | 3 A |
| Efficiency | 90 % |
Electrical data | Output
| Output voltage adjustable | Yes |
| Output voltage DC min. | 0 V |
| Output voltage DC max. | 26,4 V |
| Output current max. | 3 A |
| Buffer time min. | 12 s @ 3 A |
| Buffer time max. | 36 s @ 1 A |
Mechanical data | Mounting data
| Mounting method | geschnappt |
| Suitable for mounting type | Mounting rail TH35, (EN 60715) |
Environmental characteristics | Electromagnetic compatibility
| Immunitiy standard for industrial environments (IEC 61000-6-2) | compliant |
Environmental characteristics | Climatic
| Operating temperature min. | -20 °C |
| Operating temperature max. | 60 °C |
| Ambient temperature (storage, transport) | -20 °C … 60 °C |
Conformity
| Product standard | EN/IEC 60950-1, EN/IEC 50178 |
