– MST 86150 800VA – biến áp cách ly 1 pha
– Công suất 800VA
– Input: 208…550 VAC
– Output: 2×115 VAC
Biến áp cách ly 1 pha 800VA IN: 208…550VAC OUT: 2x115VAC MST 86150 của Murrelektronik: dãi điện áp input rộng 208-550VAC, output 2x115VAC
Electrical data | Supply
| Power frequency | 50 … 60 Hz |
Electrical data | Input
| Input voltage AC | 420, 208, 525, 550, 230, 380, 400, 440, 460, 480, 500 |
| Nominal input voltage AC | 208 V … 550 V |
| Nominal current AC | 4.2 A @ 208 V,1.61 A @ 550 V |
| Inrush current at input voltage 1 | 96 A |
| Inrush current at input voltage 2 | 36 A |
| Short-circuit current at input voltage 1 | 123 A |
| Short-circuit current at input voltage 2 | 47 A |
Electrical data | Output
| Output voltage adjustable | Yes |
| Output voltage | 1 × 230 / 1 × 115 / 2 × 115 V AC |
| Output voltage AC 1 | 230 V |
| Output voltage AC 2 | 115 V |
| Power rating AC max. | 800 VA |
Device protection | Electrical
| Insulation test voltage input – output | 4 kV |

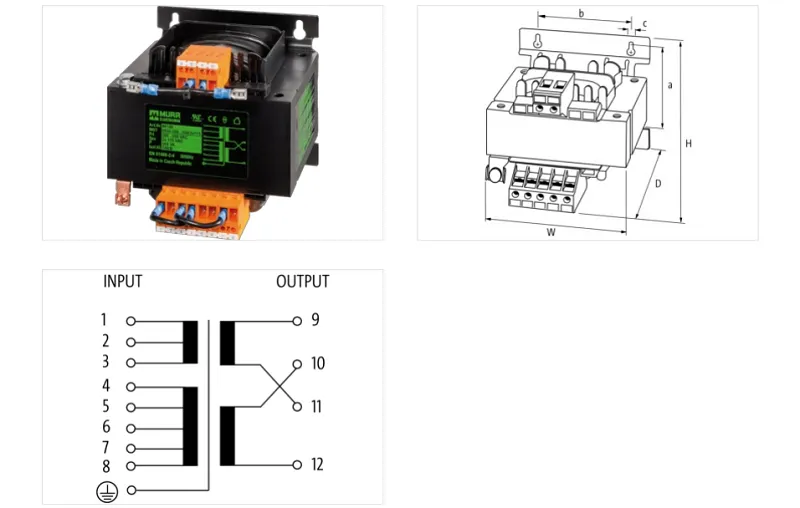

Mechanical data | Mounting data
| Height | 156 mm |
| Width | 150 mm |
| Depth | 150 mm |
| Suitable for mounting type | Keyhole mounting |
| Mounting dimension a | 134 mm |
| Mounting dimension b | 122 mm |
| Mounting dimension c | 7 mm |
| Diameter bore | 7 mm |
| Length bore | 11 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -20 °C |
| Operating temperature max. | 40 °C |
| Ambient temperature (storage, transport) | -20 °C … 80 °C |
Conformity
| Product standard | EN IEC 61558-1, EN IEC 61558-2-4, IEC 62041 category 0 |
