Biến áp cách ly
– Công suất: 100VA
– IN 208-550V
– OUT 2x115V
– Lắp trên DIN-rail hoặc vít

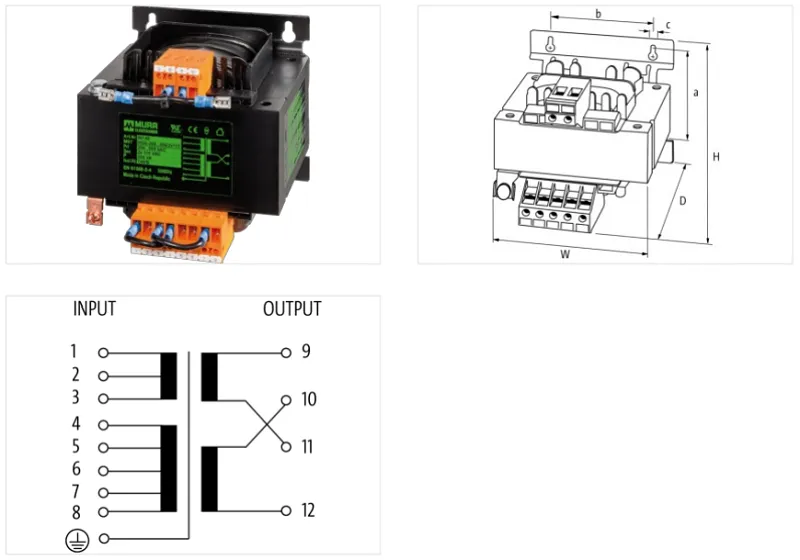

Biến áp cách ly 1 pha 100VA MTS 86143 của Murrelektronik: IN 208…550VAC OUT 2x115VAC, lắp bằng vít hoặc trên DIN-rail, là biến áp cách ly và điều khiển
Đặc điểm:
Electrical data | Supply
| Power frequency | 50 … 60 Hz |
Electrical data | Input
| Input voltage AC | 420, 208, 525, 550, 230, 380, 400, 440, 460, 480, 500 |
| Nominal input voltage AC | 208 V … 550 V |
| Nominal current AC | 57 A @ 208 V,0.21 A @ 550 V |
| Inrush current at input voltage 1 | 9.9 A |
| Inrush current at input voltage 2 | 3.8 A |
| Short-circuit current at input voltage 1 | 7.6 A |
| Short-circuit current at input voltage 2 | 2.9 A |
Electrical data | Output
| Output voltage adjustable | Yes |
| Output voltage | 1 × 230 / 1 × 115 / 2 × 115 V AC |
| Output voltage AC 1 | 230 V |
| Output voltage AC 2 | 115 V |
| Power rating AC max. | 100 VA |
Device protection | Electrical
| Insulation test voltage input – output | 4 kV |
Mechanical data | Mounting data
| Height | 105 mm |
| Width | 84 mm |
| Depth | 98 mm |
| Mounting method | geschnappt |
| Suitable for mounting type | Mounting rail TH35, Long-hole mounting, (EN 60715) |
| Mounting dimension a | 64.5 mm |
| Mounting dimension b | 64 mm |
| Mounting dimension c | 4.8 mm |
| Diameter bore | 4.8 mm |
| Length bore | 8.4 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -20 °C |
| Operating temperature max. | 40 °C |
| Ambient temperature (storage, transport) | -20 °C … 80 °C |
Conformity
| Product standard | EN IEC 61558-1, EN IEC 61558-2-4, IEC 62041 category 0 |
