– Công suất 1000VA
– Đầu vào: 230/400 VAC
– Ngõ ra: 230 VAC
– Cách ly về điện giữa input và output
– Lắp đặt: bắt vít
Biến áp cách ly 1 pha 1000VA IN 230_400VAC OUT 230VAC MST 86311 của Murrelektronik: input 230/400VAC, output 230VAC. An toàn về điện cho tủ điều khiển
Electrical data | Supply
| Power frequency | 50 … 60 Hz |
Electrical data | Input
| Nominal input voltage AC | 230 V … 400 V |
| Nominal current AC | 4.73 A @ 230 V,2.72 A @ 400 V |
| Inrush current at input voltage 1 | 66 A |
| Inrush current at input voltage 2 | 38 A |
| Short-circuit current at input voltage 1 | 148 A |
| Short-circuit current at input voltage 2 | 85 A |
Electrical data | Output
| Output voltage adjustable | No |
| Output voltage AC | 230 V |
| Power rating AC max. | 1.000 VA |
Device protection | Electrical
| Insulation test voltage input – output | 4 kV |

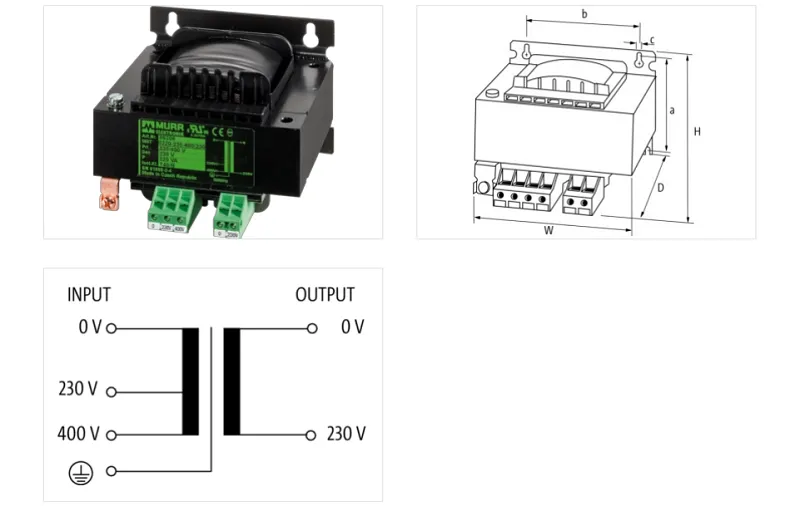

Mechanical data | Mounting data
| Height | 128 mm |
| Width | 174 mm |
| Depth | 160 mm |
| Suitable for mounting type | Keyhole mounting |
| Mounting dimension a | 102 mm |
| Mounting dimension b | 135 mm |
| Mounting dimension c | 7 mm |
| Diameter bore | 7 mm |
| Length bore | 11 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -20 °C |
| Operating temperature max. | 40 °C |
| Ambient temperature (storage, transport) | -40 °C … 80 °C |
Conformity
| Product standard | EN IEC 61558-1, EN IEC 61558-2-4, IEC 62041 category 0 |
