Ex d reduction adaptor brass
– Cỡ: M40 ren ngoài / M25 ren trong
– Đạt Ex db/Ex eb/Ex tb, ATEX/IECEx
– IP66/IP67
– Kèm locknut

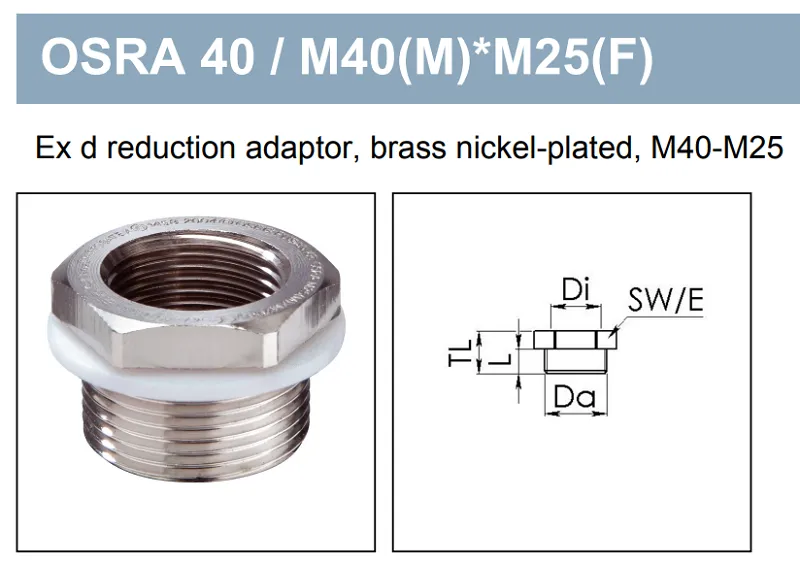

Adapter giảm kích thước Ex d M40-M25 50065657 của Wiska (OSRA 40 / M40(M)*M25(F)): bằng đồng niken, đạt Ex db/Ex eb/Ex tb, ATEX/IECEx. Dùng chuyển đổi ren M40 sang M25
Đặc điểm:
– Vật liệu: Brass nickel-plated
– Type of protection: Ex eb, Ex tb, Ex db
– Chứng chỉ: IECEx, ATEX
– Nhiệt độ: -60 °C .. 110 °C
– IP66 / IP67
– Ren ngoài M40, ren trong M25
– Kèm locknut + gioăng ren
| Material | Brass nickel-plated |
| Temp. range min | -60 °C |
| Temp. range max | 110 °C |
| Protection class | IP66 / IP67 |
| Type of protection | Ex eb, Ex tb, Ex db |
| Ex-Certificate | IECEx, ATEX |
| Thread type outer | M |
| Ø outer thread | 40 |
| Lead outer | 1,5 |
| Thread type inner | M |
| Ø inner thread | 25 |
| Lead inner | 1,5 |
| Length screw-in thread L | 15 mm |
| Key width SW | 46 mm |
| Collar diameter (E) | 49 mm |
| Total length TL | 21 mm |
| Equipment | Incl. connection thread gasket, incl. locknut |
| Surface | Nickel-plated |
| Order no. nickel-plated | 50065657 |
| Type | OSRA 40 / M40(M)*M25(F) |
| Packing unit | 1 |
| Tariff number | 74198090 |
| EAN number | 4007685656573 |
| ETIM-Classification | EC000938 |
