Trạm IO phân tán mạng Profinet 8DI 8DO MVK 55529
– DI8 DO8, M12, 5 chân, A-coded
– Tốc độ truyền tín hiệu Ethernet: 10/100 Mbit/s
– 2-hole screw mounting
– Điện áp nguồn: 24 V DC
– Cổng kết nối Ethernet: RJ45
– IP67
Trạm IO phân tán mạng Profinet 8DI 8DO MVK 55529 là một module I/O phân tán (Distributed I/O Module) IP67
– DI8 DO8, M12, 5 chân, A-coded
– Tốc độ truyền tín hiệu Ethernet: 10/100 Mbit/s
– Lắp đặt: 2-hole screw mounting
– Điện áp nguồn: 24 V DC
– Cổng kết nối Ethernet: RJ45

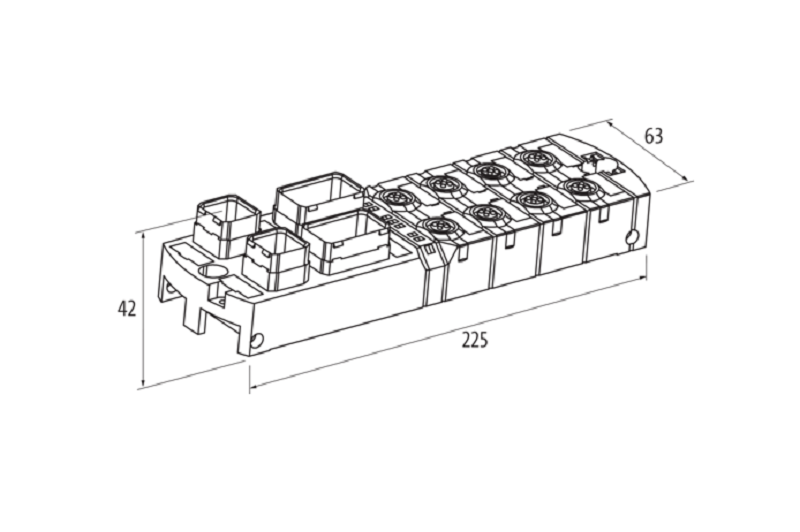

– KÍch thước: 225 x 63 x 39 mm
Thông số kỹ thuật – Trạm IO phân tán mạng Profinet 8DI 8DO MVK 55529
| Norm operating voltage | EN 61131-2 |
|---|---|
| Operating voltage US DC | 24 V |
| Total current US max. | 12 A |
| Operating voltage UA DC | 24 V |
| Total current UA max. | 12 A |
| Sensor current US per input max. | 0.2 A |
|---|---|
| Short-circuit protected | yes |
| Overload resistant | yes |
| Type input | for 3-wire sensors or mechanical switches, PNP |
| Output current per pin max. | 2 A |
|---|---|
| Overload resistant | yes |
| Short-circuit protected | yes |
| Lamp load | 10 W |
| Supported protocol | PROFINET |
|---|
| PROFINET conformance class | C |
|---|---|
| PROFINET addressing | DCP |
| PROFINET Netload Class | III |
| PROFINET specification | V2.2 |
| IRT (network communication) | yes |
| MRP client | yes |
| FSU (Fast-Start-Up) | yes |
| Fast start up time max. | 0.5 s |
| Shared device/input | yes |
| Number of active connections (IO controller) max. | 2 |
| Actuator warning | per channel via LED and BUS |
|---|---|
| Short circuit diagnosis | yes |
| Overload diagnosis | yes |
| Cable break | per port |
| Diagnostic | No voltage, Under voltage |
| Diagnostic via BUS | per module and channel |
| Diagnostic via LED | per module and channel |
| LED display | Ethernet connection/data traffic |
| Degree of protection (EN IEC 60529) | IP67 |
|---|
| Height | 42.7 mm |
|---|---|
| Width | 63 mm |
| Depth | 225 mm |
| Suitable for mounting type | 2-hole screw mounting |
| Operating temperature min. | 0 °C |
|---|---|
| Operating temperature max. | 55 °C |
| Storage temperature min. | -20 °C |
| Storage temperature max. | 70 °C |
