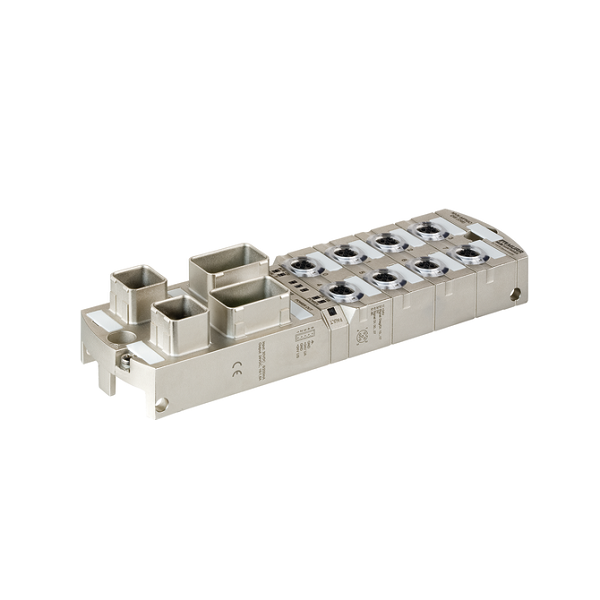

Trạm I/O mạng Profinet DI8 DO8 IRT MVK MPNIO 55529
– DI8 DO8, M12, 5 chân, A-code
– Tốc độ truyền tín hiệu Ethernet: 10/100 Mbit/s
– 2-hole screw mounting
– Điện áp nguồn: 24 V DC
– Cổng kết nối Ethernet: RJ45
– IP67
Trạm I/O mạng Profinet DI8 DO8 IRT MVK MPNIO 55529: là một module I/O phân tán (Distributed I/O Module)
– DI8 DO8, M12, 5 chân, A-code
– Tốc độ truyền tín hiệu Ethernet: 10/100 Mbit/s
– Lắp đặt: 2-hole screw mounting
– Điện áp nguồn: 24 V DC
– Cổng kết nối Ethernet: RJ45

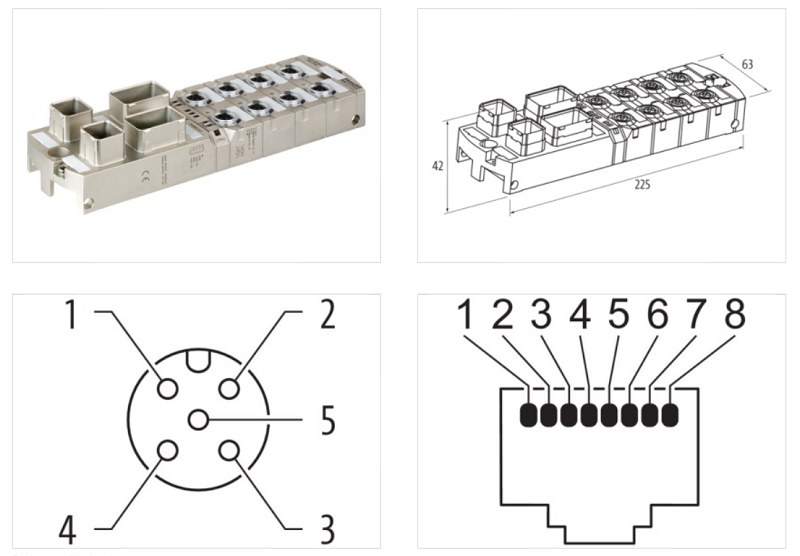

– Kích thước: 225 x 63 x 39 mm
Thông số kỹ thuật – Trạm I/O mạng Profinet DI8 DO8 IRT MVK MPNIO 55529
| Material short text | MVK+ MPNIO DI8 DO8 IRT Push Pull |
|---|
| Norm operating voltage | IEC/EN 61131-2 |
|---|---|
| Operating voltage US DC | 24 V |
| Total current US max. | 12 A |
| Operating voltage UA DC | 24 V |
| Total current UA max. | 12 A |
| Sensor current US per input max. | 0,2 A |
|---|---|
| Short-circuit protected | Yes |
| Overload resistant | Yes |
| Type input | for 3-wire sensors or mechanical switches, PNP |
| Output current per pin max. | 2 A |
|---|---|
| Overload resistant | Yes |
| Short-circuit protected | Yes |
| Lamp load | 10 W |
| Supported protocol | Profinet |
|---|
| PROFINET conformance class | C |
|---|---|
| PROFINET addressing | DCP |
| PROFINET Netload Class | III |
| PROFINET specification | V2.2 |
| IRT (network communication) | Yes |
| MRP client | Yes |
| FSU (Fast-Start-Up) | Yes |
| Fast start up time max. | 0,5 s |
| Shared device/input | Yes |
| Number of active connections (IO controller) max. | 2 |
| Actuator warning | per channel via LED and BUS |
|---|---|
| Short circuit diagnosis | Yes |
| Overload diagnosis | Yes |
| Cable break | per port |
| Diagnostic | No voltage, Under voltage |
| Diagnostic via BUS | per module and channel |
| Diagnostic via LED | per module and channel |
| LED display | Ethernet connection/data traffic |
| Degree of protection (EN IEC 60529) | IP67 |
|---|
| Height | 42,7 mm |
|---|---|
| Width | 63 mm |
| Depth | 225 mm |
| Suitable for mounting type | 2-hole screw mounting |
| Operating temperature min. | 0 °C |
|---|---|
| Operating temperature max. | 55 °C |
| Ambient temperature (storage, transport) | -20 °C |
